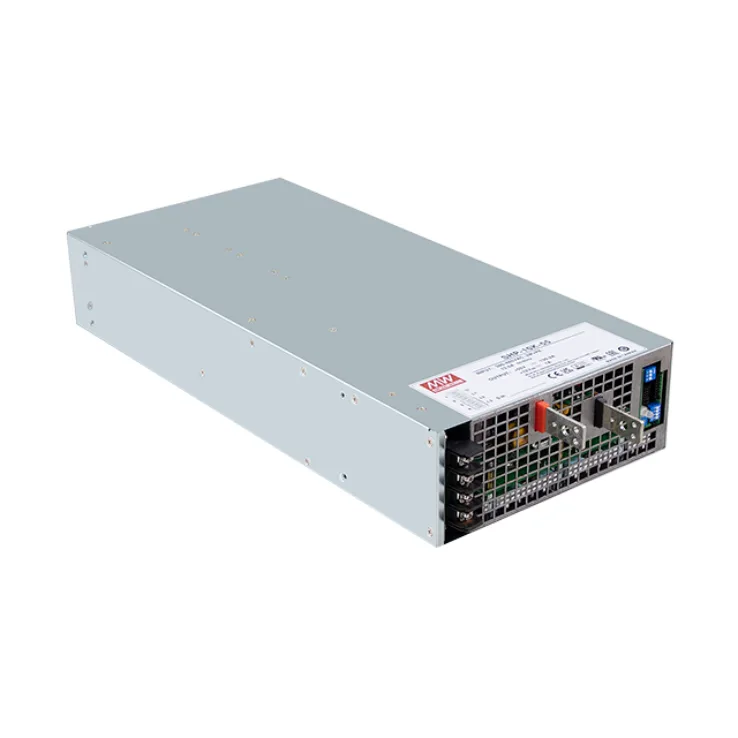

MEAN WELL SHP-10K Series Enclosed Power Supplies 7200–10000W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
SHP-10K Series Features:
SHP-10K is a 10KW 3 Ø 3W input AC/DC power supply.
Features:
- 3ψ 3-wire without neutral /340~530VAC wide input range
- High efficiency up to 97%
- Water/forced air cooling selectable
- Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
- Output voltage and constant current level programmable
- Active current sharing up to 4 units (40KW)
- Built-in remote ON-OFF control/ Auxiliary power/ Alarm signal
- Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan fail
- 5 years warranty
| Wattage | 7200 | 10000 | 10000 | 10000 |
|---|---|---|---|---|
| Input Voltage | 3ψ3-wire / 340 ~ 530VAC | 3ψ3-wire / 340 ~ 530VAC | 3ψ3-wire / 340 ~ 530VAC | 3ψ3-wire / 340 ~ 530VAC |
| Output Current | 150 | 87 | 43.5 | 26.3 |
| Output Voltage | 55 | 115 | 230 | 380 |
| Dimensions | 460*211*83.5mm | 460*211*83.5mm | 460*211*83.5mm | 460*211*83.5mm |
| Working Temperature | -30~70°C | |||
| Safety Standards | UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||
| EMC Standards | BS EN/EN55032 (CISPR32) / EN55011 (CISPR11), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | |||
