Models: |
|
Manufacturer: | MEAN WELL |
Type: | Enclosed Power Supplies |

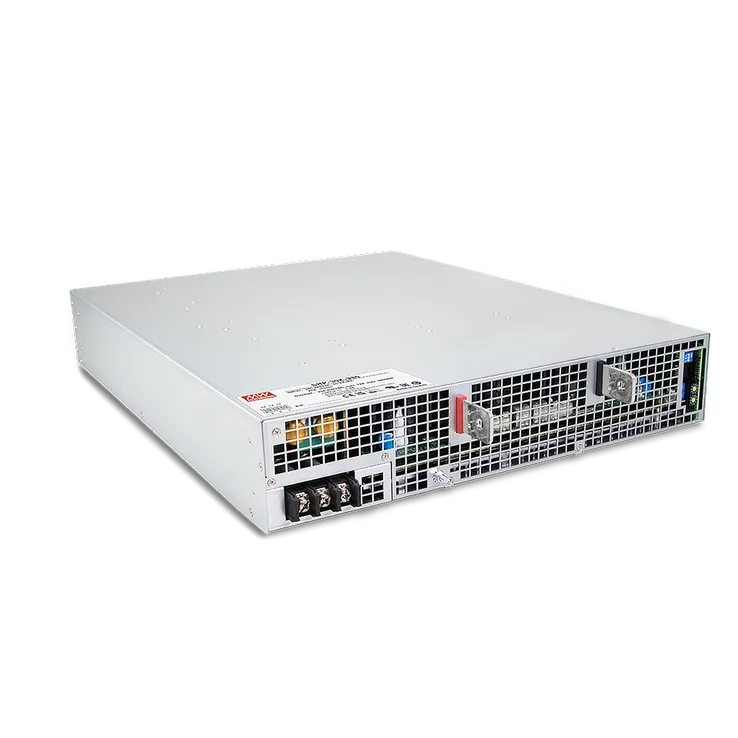

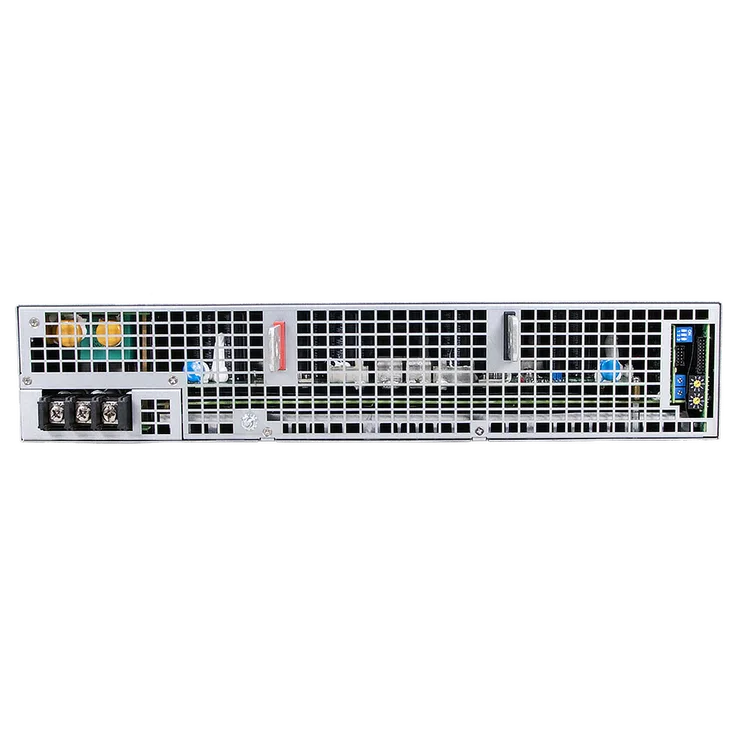

SHP-30K-HV series is a 30KW 3ψ3W input AC/DC power supply.
Features:
3-wire without Neutral / 340~530VAC wide input range
High efficiency up to 97%

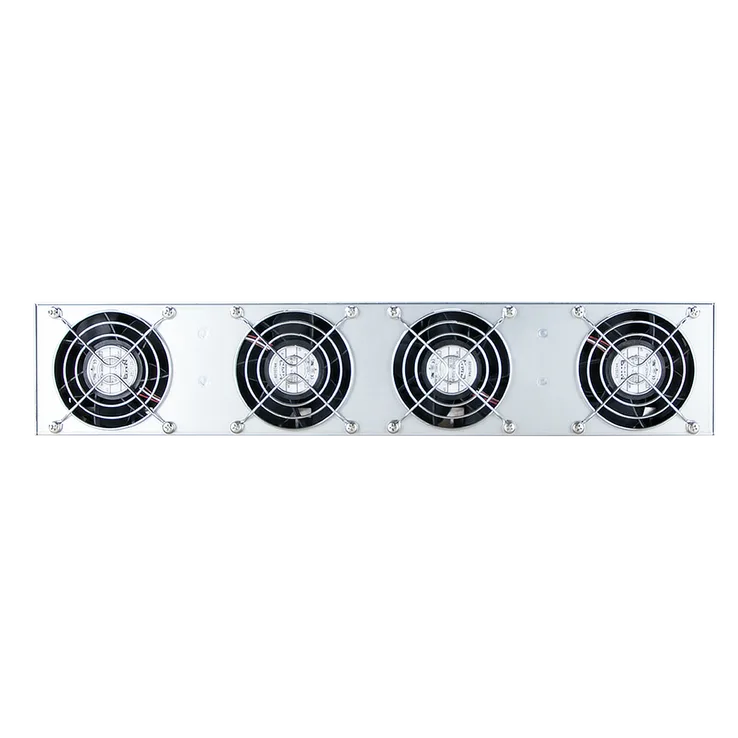

Forced air cooling
Built-in CANBus/Optional PMBus/MODBus-RTU/RS-485 protocol
Output voltage and constant current level programmable
Active current sharing up to 12 units(285KW) and more
Built-in remote ON-OFF control / Auxilary power / Alarm signal
Protections: Short circuit / Overload / Over voltage / Over temperature / Fan fail
Double insulation for 55V model
5 years warranty
Wattage | 30000 | 30000 | 30000 | 30000 |
Input Voltage | 340 ~ 530VAC | 340 ~ 530VAC | 340 ~ 530VAC | 340 ~ 530VAC |
Output Current | 346A | 261A | 130.5A | 79A |
Output Voltage | 55V | 115V | 230V | 380V |
Dimensions | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 | 540x424x83.5 |
Working Temperature | -30 ~ +70 (Refer to "Derating Curve") | |||
Safety Standards | UL62368-1, IEC62477, CAN/CSA C22.2 , TUV EN62368-1, EAC TP TC 004 approved | |||
EMC Standards | EN55024 , EN61204-3, EN61000-6-2 |
