MEAN WELL

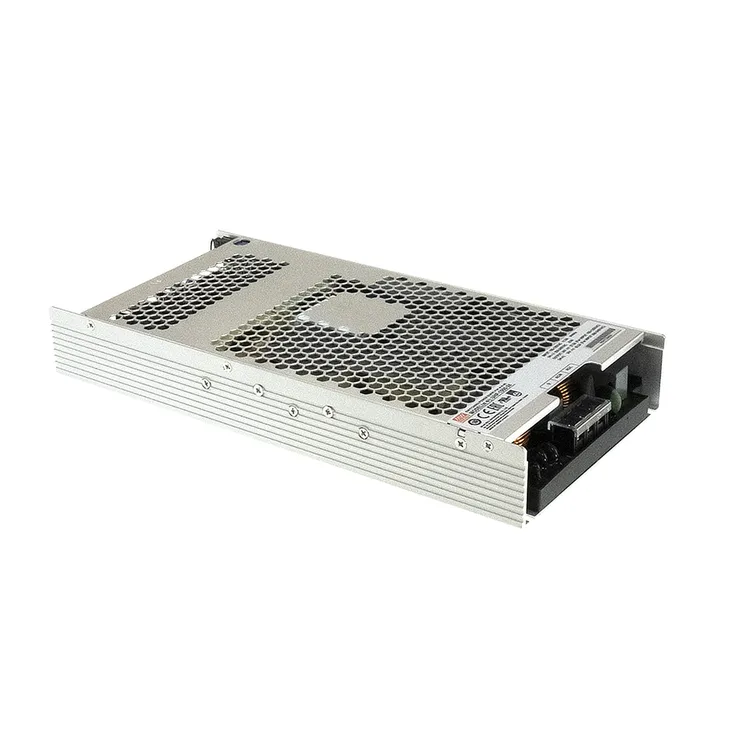

MEAN WELL UHP-1500-HV Series Enclosed Power Supplies 1500–1501W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Enclosed Power Supplies |
UHP-1500-HV Series Features:
UHP-1500 series is a 1500W single-output slim type power supply unit with 1U 41mm of low profile design.
Features:
- High voltage output (115/23/380V)
- Fanless and conduction-cooled design
- Slim and 1U low profile (41mm)
- Built-in active PFC function
- DC 12V/0.4A auxiliary power
- Output voltage and constant current level programmable (PV/PC)
- Protections: short circuit/over load/over voltage/over temperature
- Built-in remote ON-OFF control and DC OK signal
- Operating altitude up to 2000 meter (E type Note.6, Blank/PM/CAN type Note.7)
- LED indicator for power on
- Optional PMBus or CANBus protocol
- 5 years warranty
| Wattage | 1500.75 | 1500 | 1500 | 1501 | |
|---|---|---|---|---|---|
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | 90~264VAC | |
| Output Current | 13.05 | 6.95 | 4.5 | 3.95 | |
| Output Voltage | 115 | 230 | 380 | 380 | |
| Dimensions | 290x140x41mm | 290x140x41mm | 290x140x41mm | 290x140x41mm | |
| Working Temperature | -30~70°C | ||||
| Safety Standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved, Design refers to BS EN/EN61558-1, BS EN/EN60335-1 | UL6268-1, TUV BS EN/EN62368-1, EAS TP TC 004 approved, Design refers to BS EN/EN61558-1, BS EN/EN60335-1 | |||
| EMC Standards | BS EN/EN55032(CISPR32), BS EN/EN61000-3-2, BS EN/EN61000-3-3 | ||||
