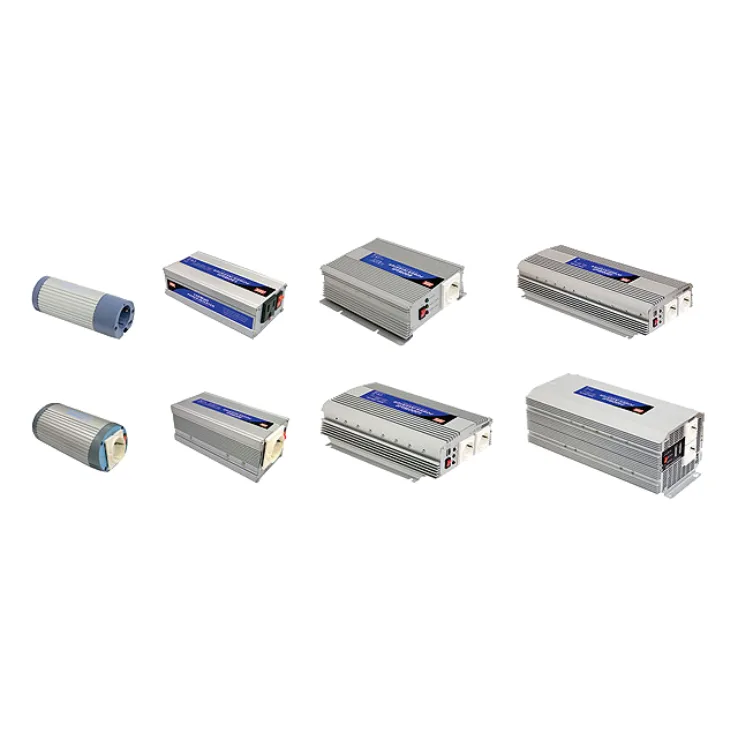

Mean Well A302 Series Inverters 100–2500W

Download Datasheet
Models:

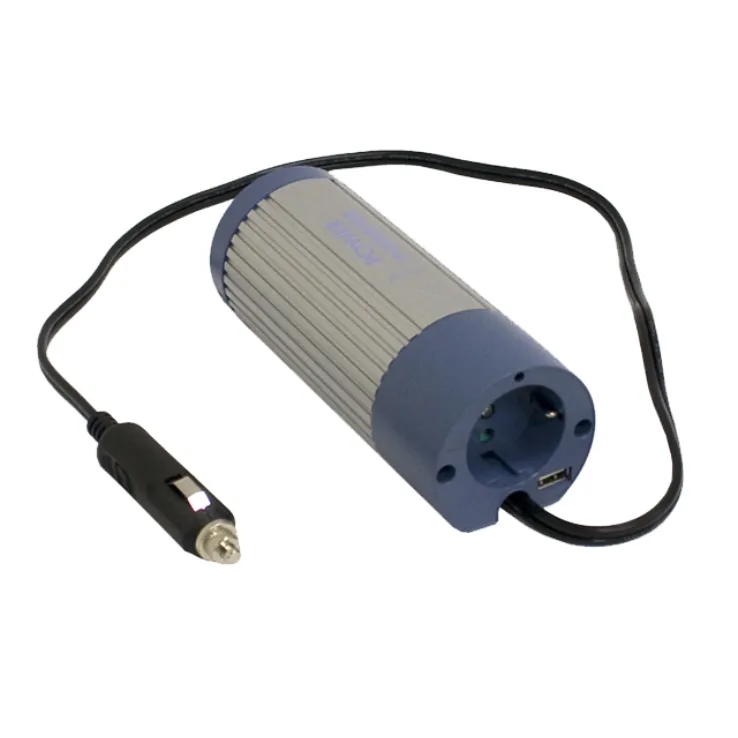

  • A302-100-F4

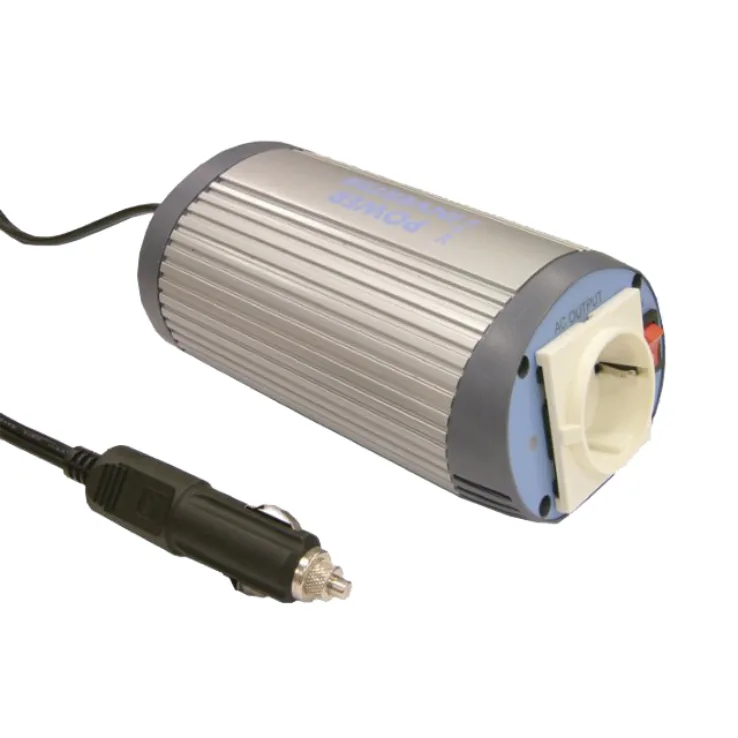

  • A302-150-F4
  • A302-1K0-F4

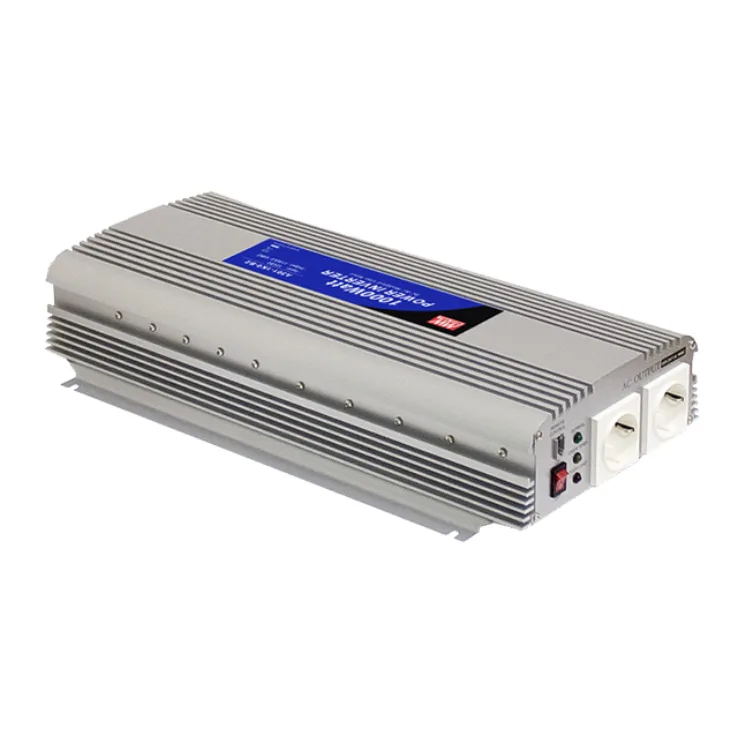

  • A302-1K7-F4

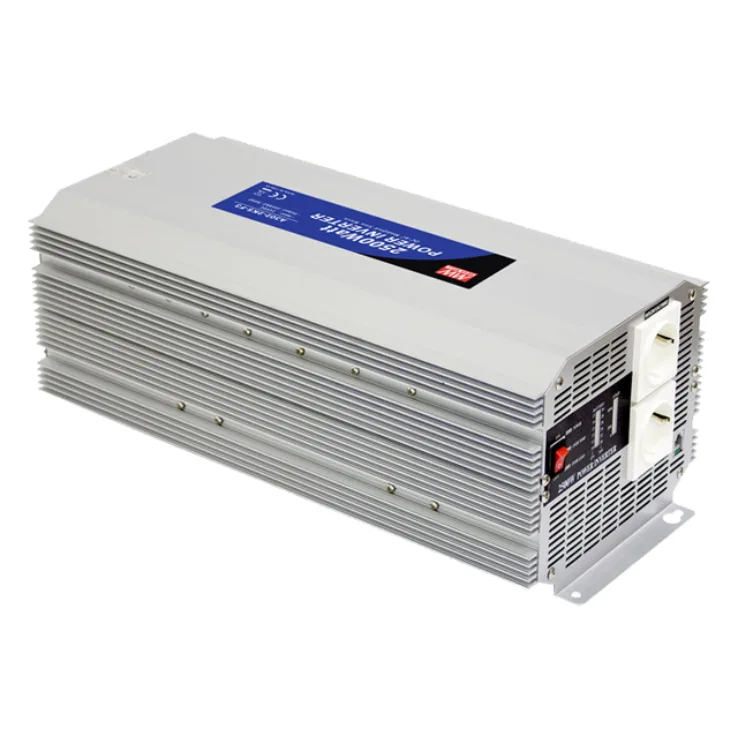

  • A302-2K5-F4

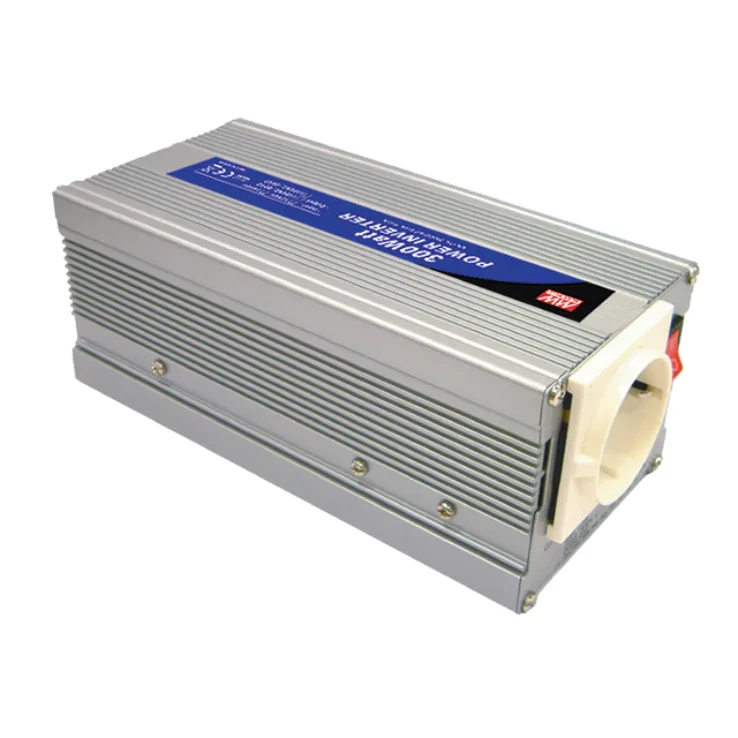

  • A302-300-F4

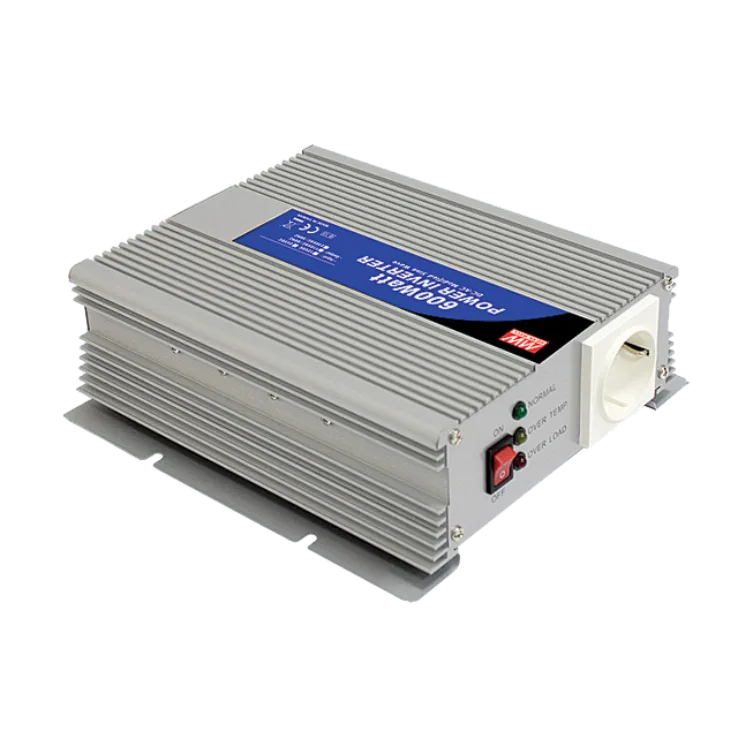

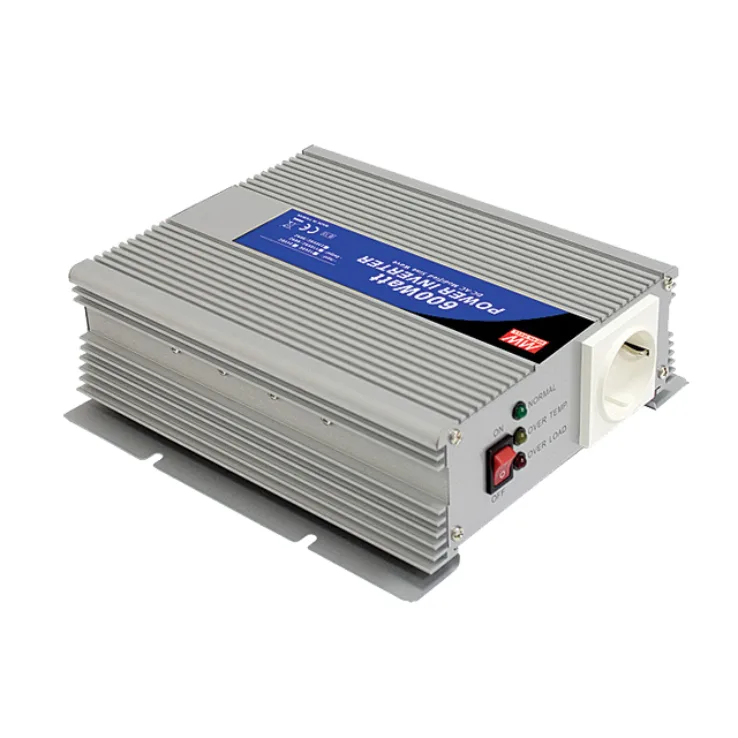

  • A302-600-F4
Manufacturer: Mean Well
Type: Inverters

A302 Series Features:

High frequency design

Output Protections: Short circuit / Overload / Over temp.

Input Protections: Reverse polarity / Over and under voltage / battery low alarm and shutdown

Other Features:

  • With power ON/OFF switch and LED indicator
  • Built in remote ON/OFF control for 1000-2500W (optional)
  • Built in USB interface and without fan for 100W
  • Input and output fully isolation
  • Low power consumption (standby)
  • LVD meet EN60950-1 and e13 mark
  • EMC meet EN61000-4-2,3, EN55022
  • 1 year warranty
Wattage 100 150 1000 1700 2500 300 600
Input Voltage 21-30 21-30VDC 21-30VDC 21-30VDC 21-30VDC 21-30VDC 21-30VDC
Output Current 0 0 0 0 0 0 0
Output Voltage 230 230 230 230 230 230 230
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A
Dimensions 170 x 65 165 x 94 x 69 320 x 210 x 85 455 x 210 x 85 430 x 210 x 159 165 x 88 x 74 210 x 173 x 65
Working Temperature 0~30B0C
Safety Standards N/A
EMC Standards Compliance to EN55014-1, EN61000-3-2,3, EN61000-4-2,4,5,6,11 EN55014-1, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
