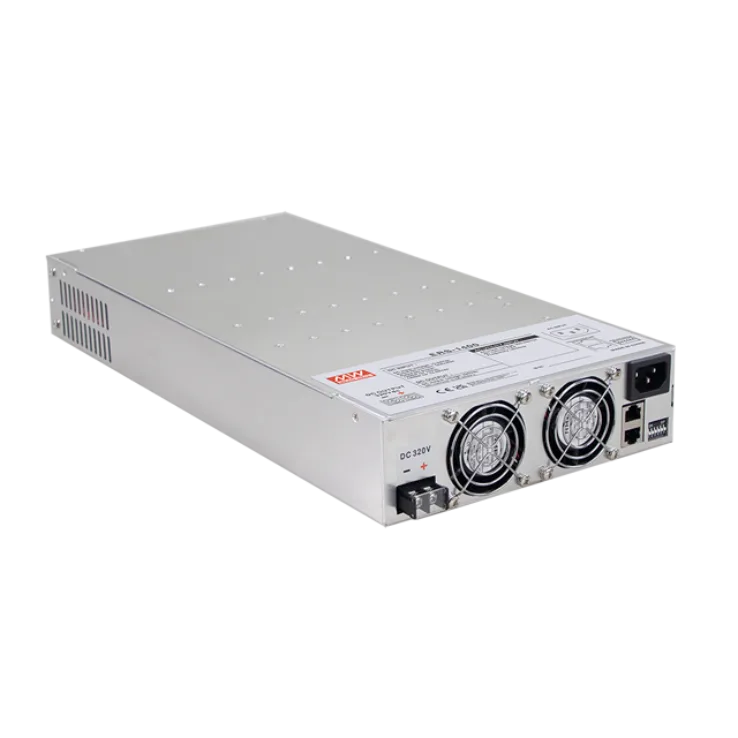

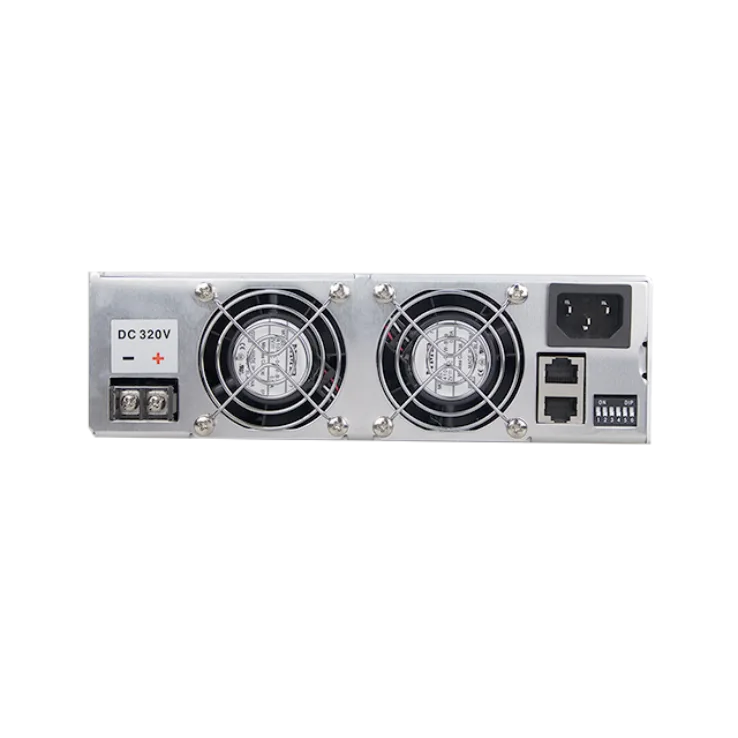

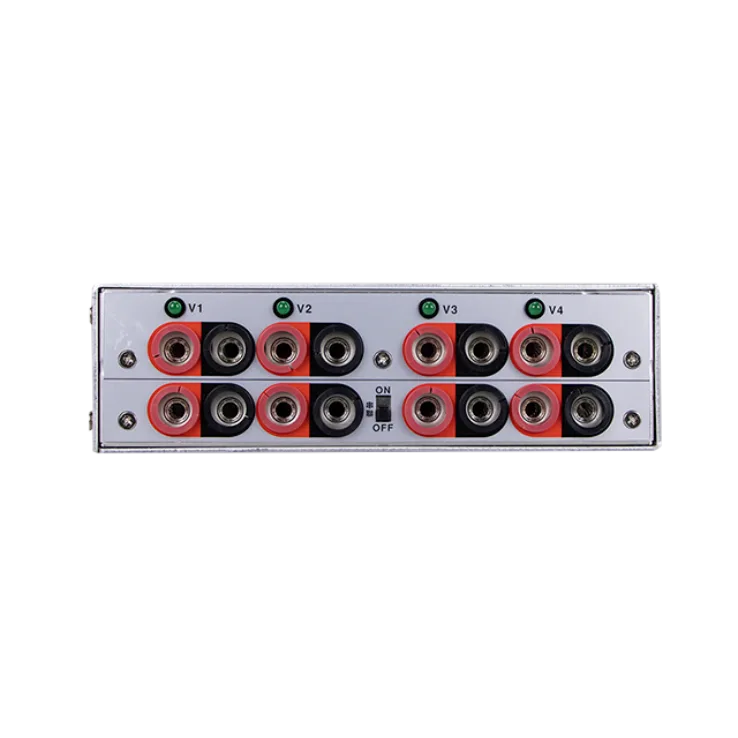

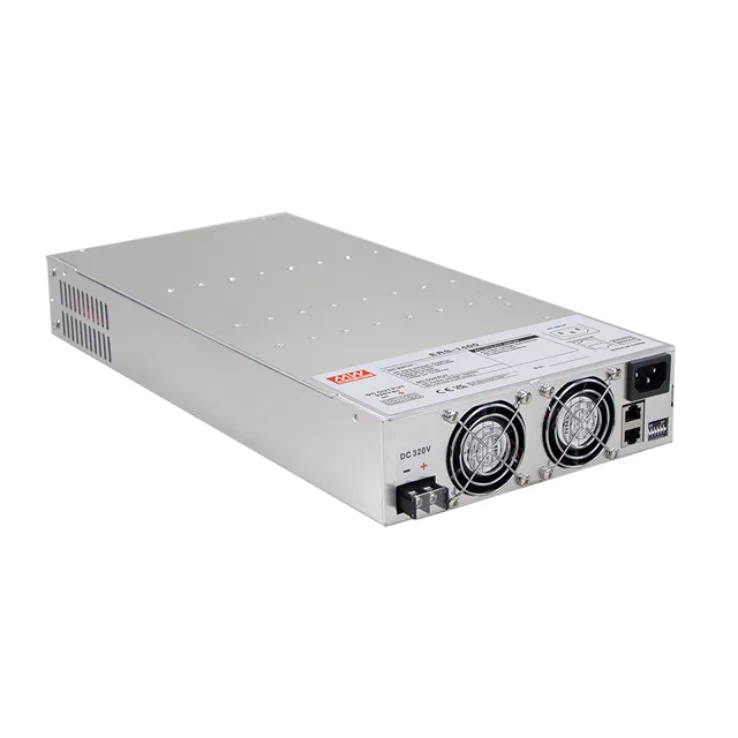

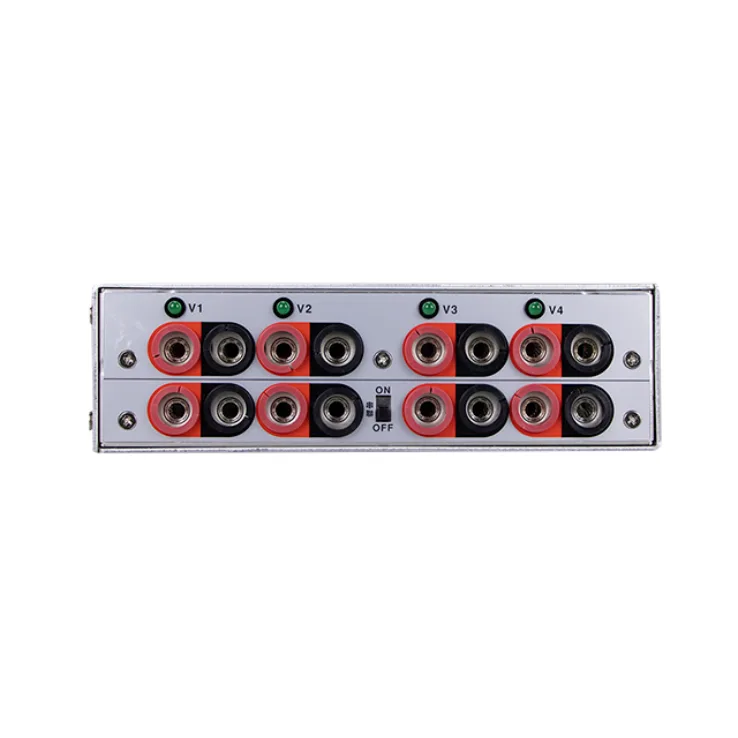

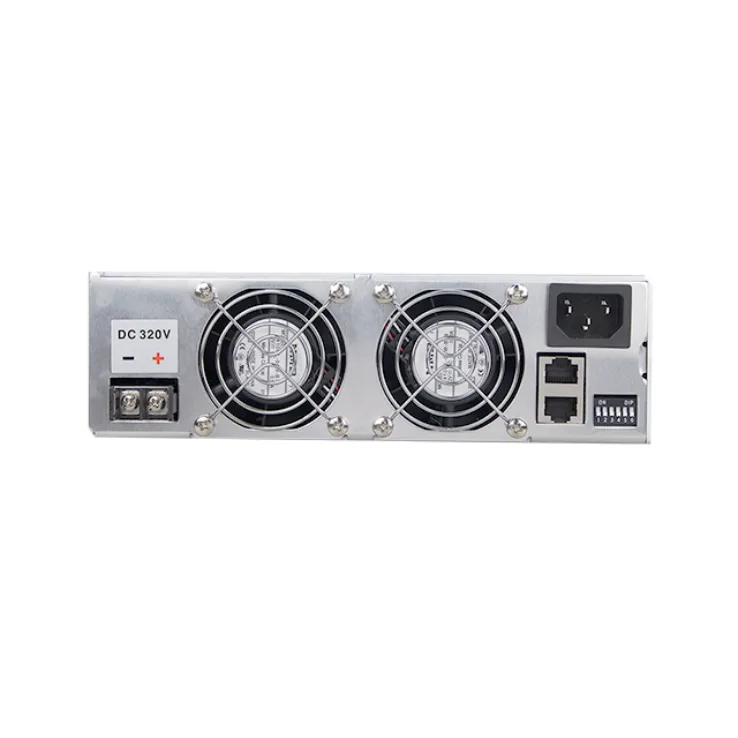

MEAN WELL ERS-1400 Series Inverters W

Download Datasheet
Models:
  • ERS-1400
  • ERS-1400
Manufacturer: MEAN WELL
Type: Inverters

ERS-1400 Series Features:

ERS-1400 series is an DC energy recycling power unit that supports 1400W rated input, it can achieve high efficiency up to 91%.

Features:

  • Wide input voltage range 10~60VDC/60~380VDC by models
  • High efficiency up to 91%
  • Modular design for flexible configuration
  • Flexible CC/CV/CP operation models
  • Remote control and monitoring by CANBus protocol via CMU2A control console
  • Maximum 64 units ERS-1400 series that can be connected
  • Protections: over voltage/under voltage/ over temperature/ communication error
  • 5 years warranty
Input Voltage 10~60VDC 60~380VDC
Output Current 6.3 6.3
Output Voltage 320VDC 320VDC
Dimensions 450*213*63.5mm 450*213*63.5mm
Working Temperature -20 ~ +60℃
Safety Standards EN61347-1, EN61347-2-13
EMC Standards Compliance to BS EN/EN55032 (CISPR32)
