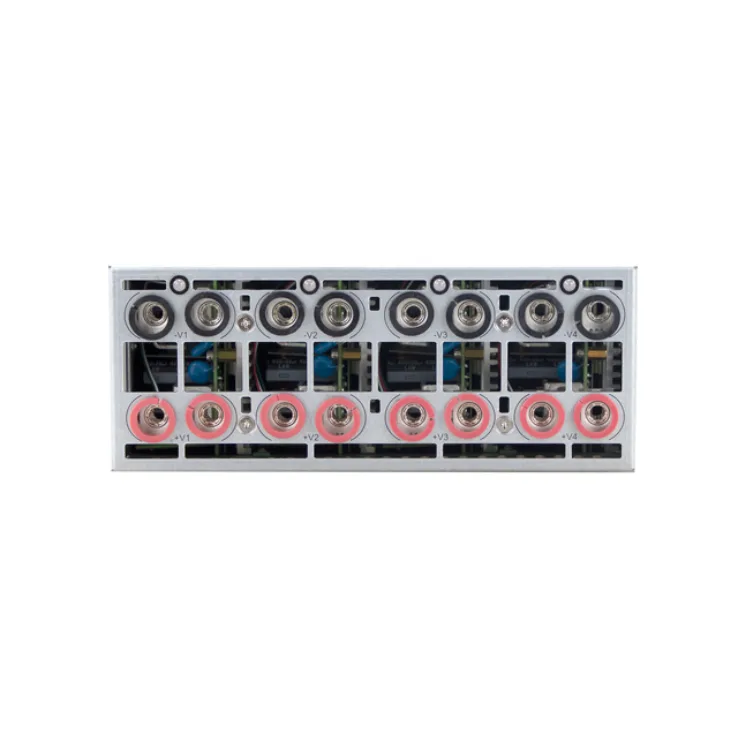

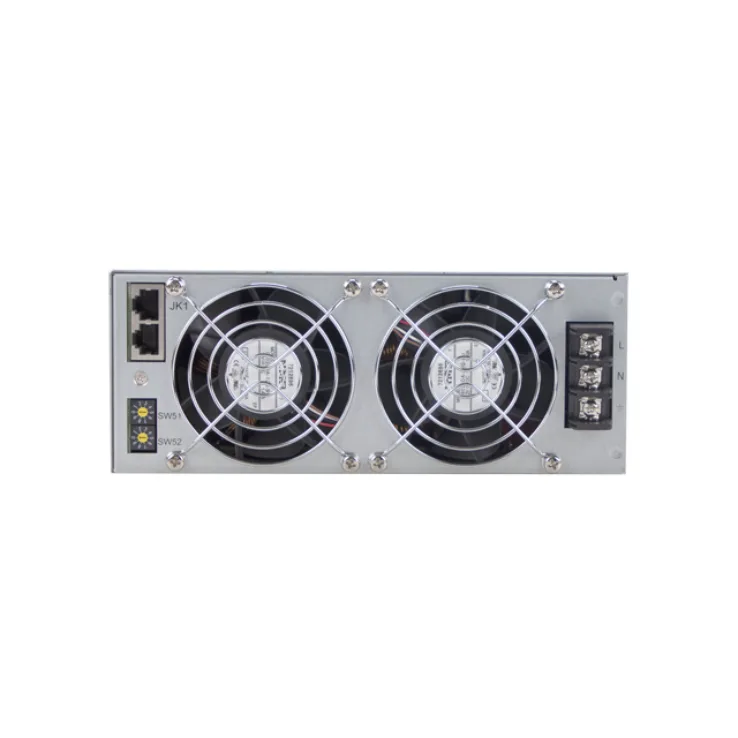

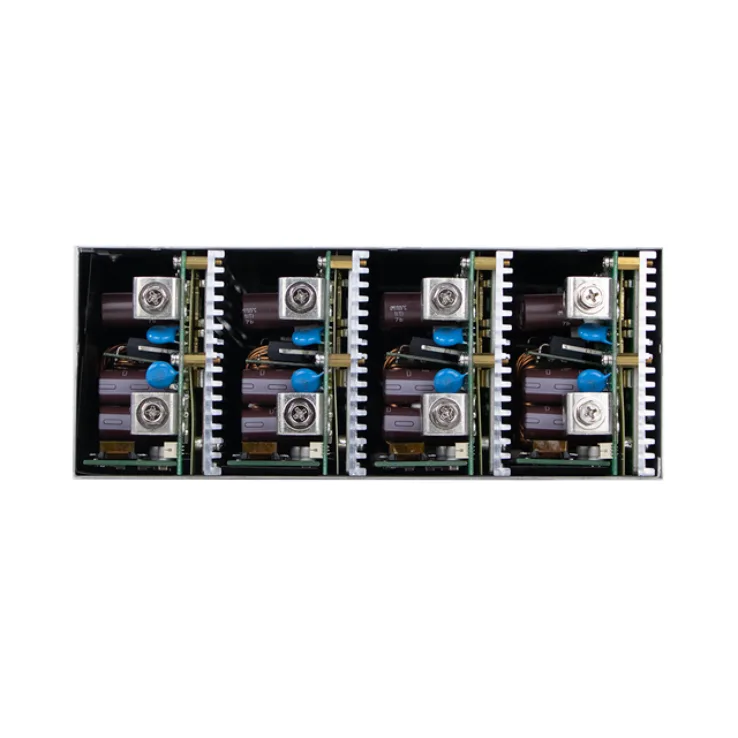

MEAN WELL ERG-5000 Series Inverters 5000W
Download Datasheet
ERG-5000 Series Features:
ERG-5000 series is an Grid Type energy recycling power inverter that supports 5KW rated and maximum up to 6KW input, it can achieve high efficiency up to 91%.
Features:
- Wide input voltage range 10~60VDC/60~420VDC by models
- High efficiency up to 91%
- Modular design for flexible configuration
- Flexible CC/CV operation modes
- Remote control and monitoring by CANBus protocol via CMU2A control console
- Maximum 64 units ERG-5000 series that can be connected
- Protections: over voltage/ under voltage/ over temperature/ over power/ grid fault/ communication error
- 5 years warranty
| Wattage | 5000 | 5000 |
|---|---|---|
| Input Voltage | 10~60VDC | 60~420VDC |
| Output Current | 24A/230VAC | 24A/230VAC |
| Output Voltage | 180~264±5VAC, single phase | 4500 ~ 4600VA (For input 60 ~ 420VDC) |
| Dimensions | 504*211*83.5mm | 504*211*83.5mm |
| Working Temperature | -20 ~ +60℃ | |
| Safety Standards | BS EN/EN62368-1 approved | |
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class A | |
