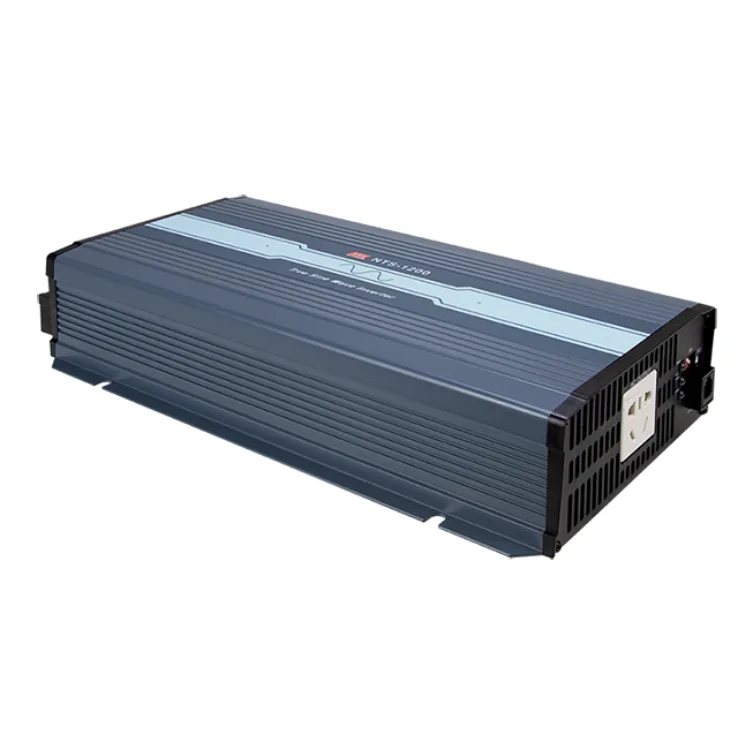

Mean Well NTU-1200 Inverters 1200W

Download Datasheet
Models:
  • NTU-1200-112US
  • NTU-1200-112GFCI
  • NTU-1200-112UN
  • NTU-1200-124US
  • NTU-1200-124GFCI
  • NTU-1200-124UN
  • NTU-1200-148US
  • NTU-1200-148GFCI
  • NTU-1200-148UN
  • NTU-1200-212EU
  • NTU-1200-212CN
  • NTU-1200-212AU
  • NTU-1200-212UK
  • NTU-1200-212UN
  • NTU-1200-224EU
  • NTU-1200-224CN
  • NTU-1200-224AU
  • NTU-1200-224UK
  • NTU-1200-224UN
  • NTU-1200-248EU
  • NTU-1200-248CN
  • NTU-1200-248AU
  • NTU-1200-248UK
  • NTU-1200-248UN
Manufacturer: Mean Well
Type: Inverters

NTU-1200 Features:

NTU-1200 is a 1200W highly reliable off-grid true sine wave DC-AC power inverter with built-in UPS function (AC by-pass).

Features:

  • Built-in UPS function (AC by-pass)
  • True sine wave output (THD<3%)
  • High surge power up to 2000W
  • Temperature controlled cooling fan
  • AC output voltage and frequency selectable by DIP S.W
  • -25~70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections: Input: Reverse polarity/ DC low alarm/ DC low shutdown/ Over voltage. Output: Short circuit/ Overload/ Over temp.
  • Battery over discharge protection (low voltage disconnect)
  • Suitable for lead-acid or li-on batteries
  • Remote controller
  • Support RS-232 communication
  • Conformal coating
  • 3 years warranty
Wattage 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200 1200
Input Voltage 12 12 12 24 24 24 48 48 48 12 12 12 12 12 24 24 24 24 24 48 48 48 48 48
Output Voltage 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC 230VAC
Output Voltage Options 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W
Dimensions 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm 333*184*70mm
Working Temperature -25~70°C
Safety Standards CB IEC62368-1, Dekras BS EN/EN62368-1, UL458, E13, EAC TP TC 004, AS/NZS 62368.1 approved
EMC Standards FCC for 112,124,148 on;y ( except for Type-UN), BS EN/EN55032(CISPR32) for 212,224,248 only (except for Type-UN), FCC for 112,124,148 only (except for Type-UN), BS EN/EN55032(CISPR32) for 212,224,248 only ( except for Type-UN), BS EN/EN61000-3-2, BS EN/EN61000-3-3
