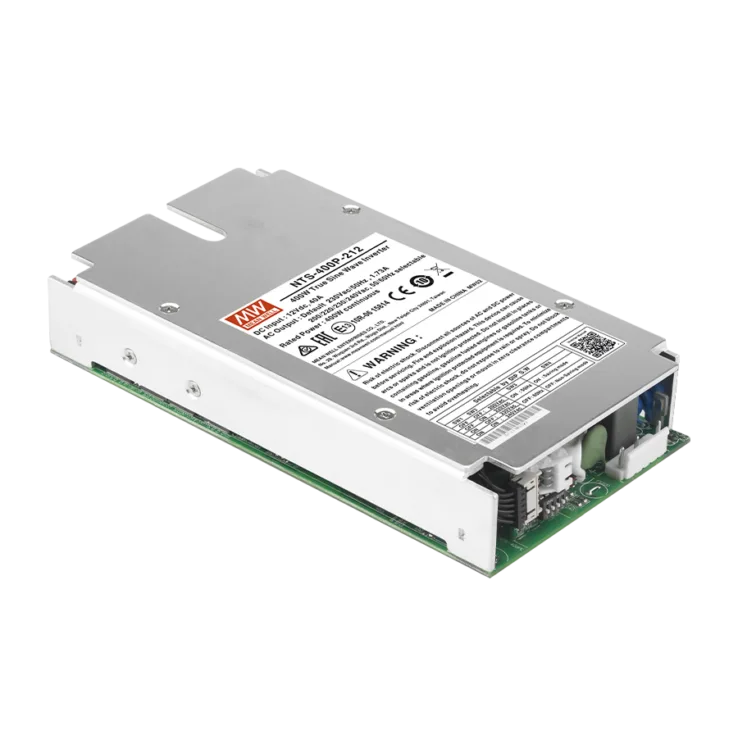

MEAN WELL NTS-400P Series Inverters 400W

Download Datasheet
Models:
  • NTS-400P-112
  • NTS-400P-124
  • NTS-400P-148
  • NTS-400P-212
  • NTS-400P-224
  • NTS-400P-248
Manufacturer: MEAN WELL
Type: Inverters

NTS-400P Series Features:

NTS-400P is a 400W highly reliable built-in type off-grid true sine wave DC-AC power inverter.

Features:

  • DC-AC pure since wave output (THD<3%)
  • Convection cooled fanless design, high efficiency up to 93%
  • 200% Peak power capability (NTS-250P up to 500W, NTS-400P up to 800W)
  • Built-in DIP switches to adjust AC output voltage, frequency, and work mode
  • Energy saving mode no load power consumption < 1.2~1.5W (by model)
  • -20~+70℃ ultra-wide operating temperature (derating required for >+40℃)
  • Built-in remote ON/OFF control
  • Support Tx /Rx computer communication interface to monitor inverter status
  • Multiple intelligent protection functions (abnormal automatic shutdown):
    DC input side – reverse polarity, under voltage, over voltage protections
    AC output side – short circuit, overload, over temperature protections
  • PCB conformal coating, protection from moisture / dust / dirt
  • Wide DC voltage input range, suitable for lead acid and lithium batteries
  • Safety approvals: CB, E13, EAC, RCM, CE, FCC
  • Dimensions (L x W x H): 186 x 100.5 x 32mm
  • 3-year warranty
Wattage 400 400 400 400 400 400
Input Voltage 12 24 48 12 24 48
Output Voltage 110VAC 110VAC 110VAC 230VAC 230VAC 230VAC
Output Voltage Options 100/110/115/120 VAC selectable by DIP S.W 100/110/115/120 VAC selectable by DIP S.W 100/110/115/120 VAC selectable by DIP S.W 200/220/230/240 VAC selectable by DIP S.W 200/220/230/240 VAC selectable by DIP S.W 200/220/230/240 VAC selectable by DIP S.W
Dimensions 186*100.5*32mm 186*100.5*32mm 186*100.5*32mm 186*100.5*32mm 186*100.5*32mm 186*100.5*32mm
Working Temperature -20~70°C
Safety Standards CB IEC62368-1 for all models. E13, EAC TPTC004, AS/NZS 62368.1 for NTS-400P-212/224/248
EMC Standards FCC for 112,124,148 only. EN55032(CISPR32) for 212,224,248 only, EN61000-3-2, EN61000-3-3
