Mean Well NTS-450 Inverters 450W

Download Datasheet
Models:
  • NTS-450-112US
  • NTS-450-112GFCI
  • NTS-450-112UN
  • NTS-450-124US
  • NTS-450-124GFCI
  • NTS-450-124UN
  • NTS-450-148US
  • NTS-450-148GFCI
  • NTS-450-148UN
  • NTS-450-212EU
  • NTS-450-212CN
  • NTS-450-212AU
  • NTS-450-212UK
  • NTS-450-212UN
  • NTS-450-224EU
  • NTS-450-224CN
  • NTS-450-224AU
  • NTS-450-224UK
  • NTS-450-224UN
  • NTS-450-248EU
  • NTS-450-248CN
  • NTS-450-248AU
  • NTS-450-248UK
  • NTS-450-248UN
Manufacturer: Mean Well
Type: Inverters

NTS-450 Features:

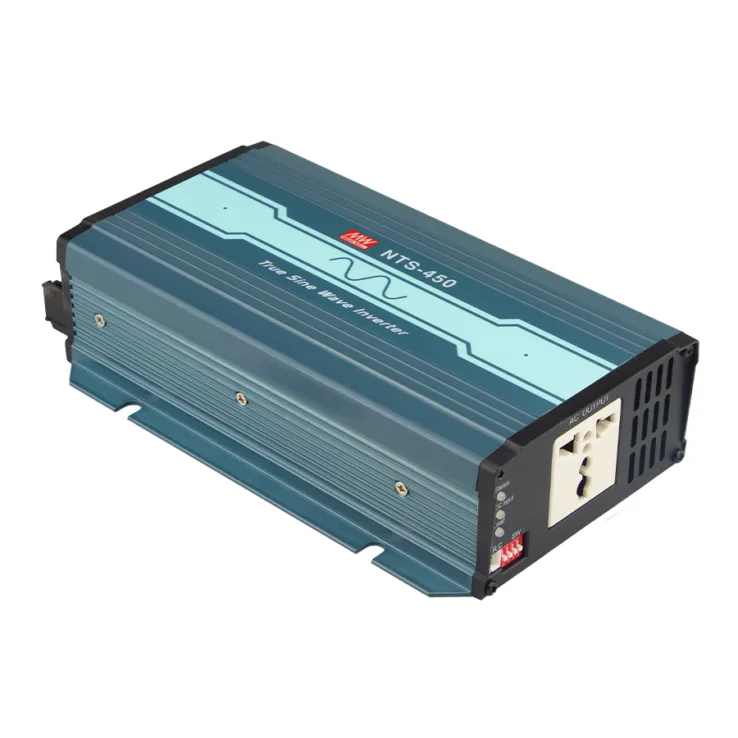

NTS-450 is a 450W highly reliable off-grid true sine wave DC-AC power inverter.

Features:

  • Compact size and light weight
  • True sine wave output (THD<3%)
  • High surge power up to 900W
  • Temperature controlled cooling fan
  • AC output voltage and frequency selectable by DIP S.W
  • No load disspation <1.5W max at standby saving mode
  • -25°C~+70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections: Input: Reverse polarity/DC low alarm/DC low shutdown/Over voltage. Output: Short circuit/Overload/Over temp.
  • Battery over discharge protection(Low voltage disconnect)
  • Suitable for lead-acid or li-ion batteries
  • Conformal coating
  • 3 years warranty
Wattage 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450
Input Voltage 12V 12V 12V 24V 24V 24V 48V 48V 48V 12V 12V 12 12 12 24 24 24 24 24 48 48 48 48 48
Output Voltage 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC 110VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC Default setting set at 230VAC
Output Voltage Options 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 100/110/115/120VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W 200/220/230/240VAC selectable by DIP S.W
Dimensions 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55 210*130*55
Working Temperature -25~70°C
Safety Standards CB IEC62368-1, Dekra EN62368-1, E13, EAC, TP TC 004, AS/NZS 62368.1 approved
EMC Standards FCC for 112,124,148 only (expect for Type-UN), EN55032(CISPR32) for 212,224, 248 only (expect for Type-UN), EN61000-3-2, EN61000-3-3
