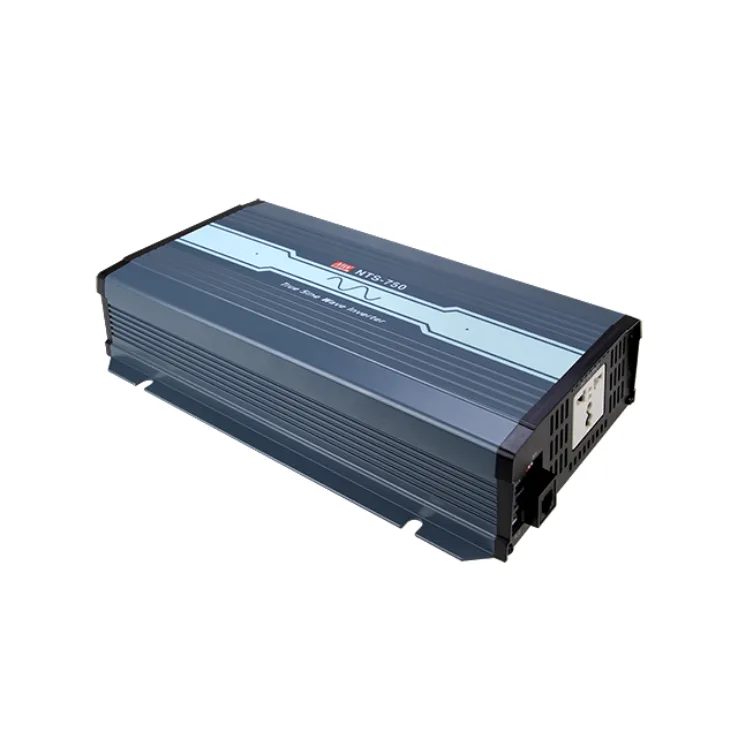

Mean Well NTS-750 Series Inverters 750W

Download Datasheet
Models:
  • NTS-750-112US
  • NTS-750-112GFCI
  • NTS-750-112UN
  • NTS-750-124US
  • NTS-750-125GFCI
  • NTS-750-124UN
  • NTS-750-148US
  • NTS-750-148GFCI
  • NTS-750-148UN
  • NTS-750-212EU
  • NTS-750-212CN
  • NTS-750-212AU
  • NTS-750-212UK
  • NTS-750-212UN
  • NTS-750-224EU
  • NTS-750-224CN
  • NTS-750-224AU
  • NTS-750-224UK
  • NTS-750-224UN
  • NTS-750-248EU
  • NTS-750-248CN
  • NTS-750-248AU
  • NTS-750-248UK
  • NTS-750-248UN
Manufacturer: Mean Well
Type: Inverters

NTS-750 Series Features:

NTS-750 is a 750W highly reliable off-grid true sine wave DC-AC power inverter.

Features:

  • Compact size and light weight
  • True sine wave output (THD<3%)
  • High surge power up to 1500W
  • Temperature controlled cooling fan
  • AC output voltage and frequeny selectable by DIP S.W
  • No load disspation <1.5W at standby saving mode
  • -25~+70°C wide operating temperature
  • Power ON-OFF remote control
  • Front panel indicator for operation status
  • Protections: Input: Reverse polarity/DC low alarm/DC low shutdown/Over voltage. Output: Short circuit/ Overload/Over temp/
  • Battery over discharge protection (Low voltage disconnect)
  • Suitable for lead-acid or li-on batteries
  • Remote controller
  • Conformal coating
  • 3 years warranty
Wattage 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750 750
Input Voltage 10~16.5Vdc 10~16.5Vdc 10~16.5Vdc 20~33Vdc 20~33Vdc 20~33Vdc 40~66Vdc 40~66Vdc 40~66Vdc 10~16.5Vdc 10~16.5Vdc 10~16.5Vdc 10~16.5Vdc 10~16.5Vdc 20~33Vdc 20~33Vdc 20~33Vdc 20~33Vdc 20~33Vdc 40~66Vdc 40~66Vdc 40~66Vdc 40~66Vdc 40~66Vdc
Output Voltage Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting set at 110VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC Default setting at 230VAC
Output Voltage Options 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 100/110/115/120Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W 200/220/230/240Vac selectable by DIP S.W
Dimensions 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm 270*158*67mm
Working Temperature -25~70°C
Safety Standards CB IEC62368-1, Dekra EN62368-1, UL458, E13, EAC TP TC 004, AS/NZS 62368.1 approved
EMC Standards FCC for 112,124,148 only(except for type-UN), EN61000-3-2, EN61000-3-3
