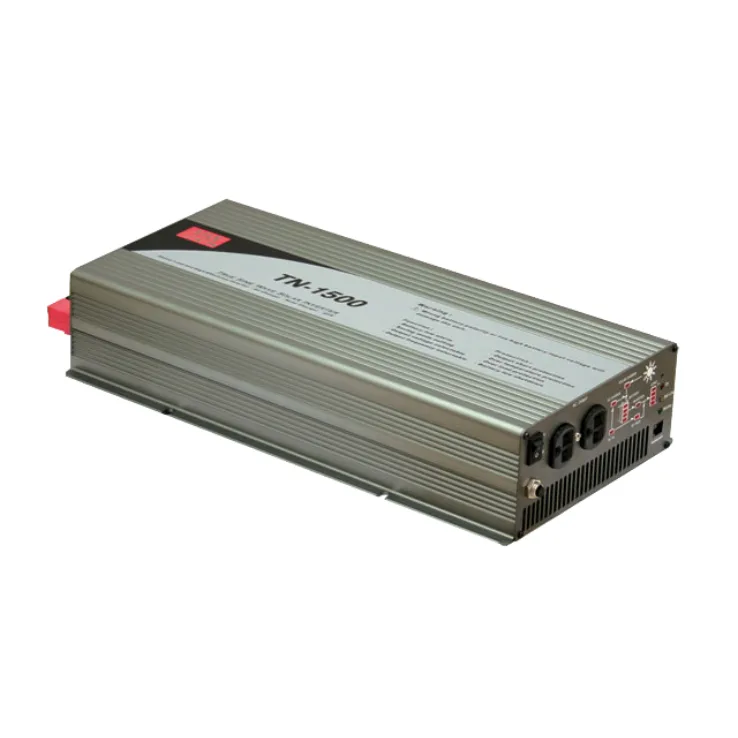

MEAN WELL TN-1500 Series Inverters 1500W
Download Datasheet
TN-1500 Series Features:
True sine wave output (THD <3%)
Output Protections: Short circuit / Overload / Over temp. / AC circuit breaker
Input Protections: Bat. Low alarm / Bat. Low shutdown / Reverse polarity / Over Voltage
Other Features:
- 2 times high surge power for motor related application
- Advanced digital control by microprocessor
- High efficiency up to 92%
- Standby saving mode to converse energy
- Built in fan ON/OFF control function
- Output voltage / frequency adjustable
- Front panel indicator for load / battery / operation status
- High frequency design
- With UPS function: AC by pass / Built in AC and solar charger
- Fast transfer time under 10ms ( Inverter mode <> By pass mode )
- Solar input current up to 30A max.
- Optional monitoring software
| Wattage | 1500 | 1500 | 1500 |
|---|---|---|---|
| Input Voltage | 10.5-15VDC | 21.0-30VDC | 42.0-60VDC |
| Output Current | 0 | 0 | 0 |
| Output Voltage | 230 | 230 | 230 |
| Output Voltage Options | Single | Single | Single |
| DC output adjustment | N/A | N/A | N/A |
| Dimensions | 420 x 220 x 88 | 420 x 220 x 88 | 420 x 220 x 88 |
| Working Temperature | -30~+65°C | ||
| Safety Standards | Compliance to EN60950-1 | ||
| EMC Standards | Compliance to EN55022 class A (class B for TN-1500), E-Mark, EN61000-4-2,3,4,5,6,8,11, ENV50204 | ||
