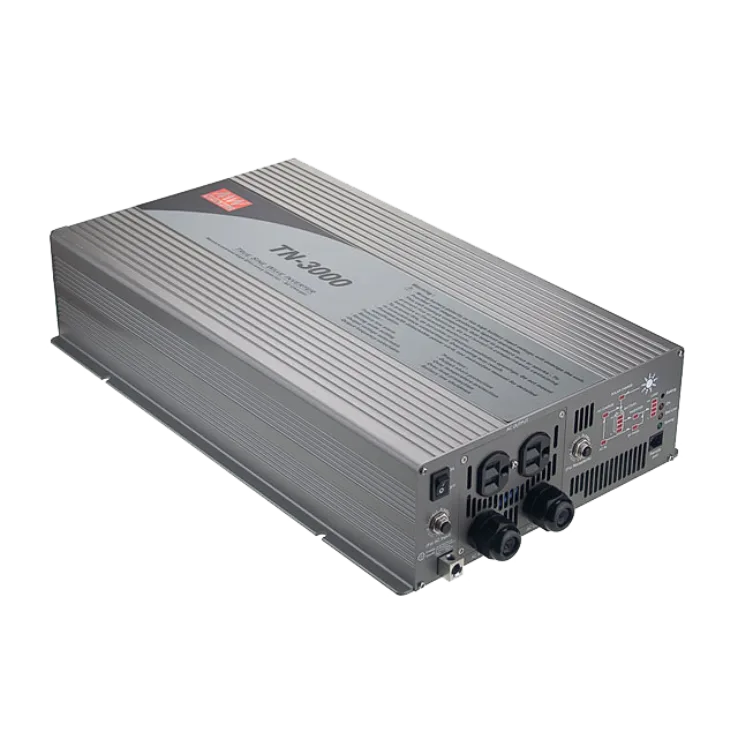

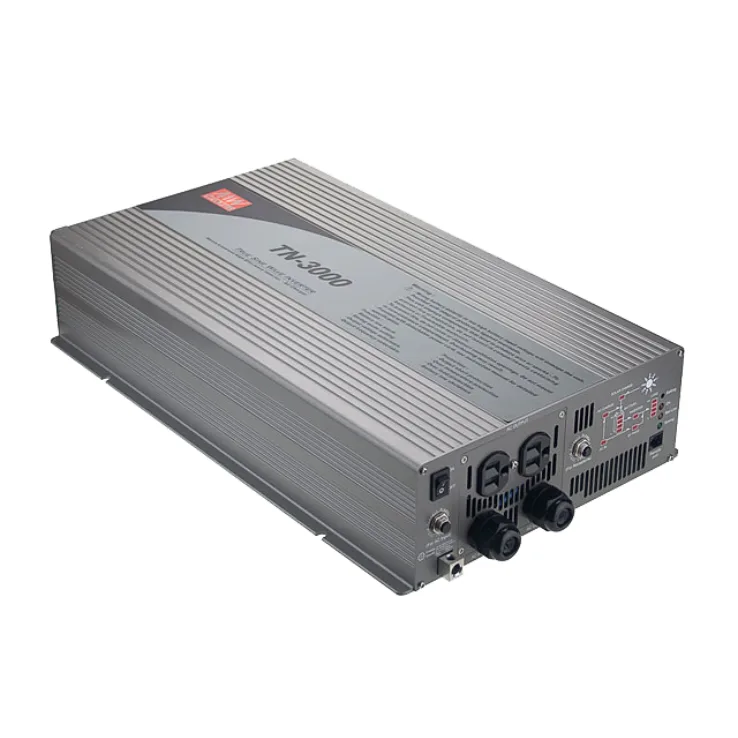

Mean Well TN-3000 Series Inverters 3000W

Download Datasheet
Models:
  • TN-3000-212B
  • TN-3000-224B
  • TN-3000-248B
Manufacturer: Mean Well
Type: Inverters

TN-3000 Series Features:

True sine wave output (THD <3%)

Output Protections: Short circuit / Overload / Over temp. / AC circuit breaker

Input Protections: Bat. Low alarm / Bat. Low shutdown / Reverse polarity / Over Voltage

Other Features:

  • 2 times high surge power for motor related application
  • Advanced digital control by microprocessor
  • High efficiency up to 92%
  • Standby saving mode to converse energy
  • Built in fan ON/OFF control function
  • Output voltage / frequency adjustable
  • Front panel indicator for load / battery / operation status
  • High frequency design
  • With UPS function: AC by pass / Built in AC and solar charger
  • Fast transfer time under 10ms ( Inverter mode <> By pass mode )
  • Solar input current up to 30A max.
  • Optional monitoring software
Wattage 3000 3000 3000
Input Voltage 10.5-15VDC 21.0-30VDC 42.0-60VDC
Output Current 0 0 0
Output Voltage 230 230 230
Output Voltage Options Single Single Single
DC output adjustment N/A N/A N/A
Dimensions 474 x 283 x 98 474 x 283 x 98 474 x 283 x 98
Working Temperature -30~+65B0C -20~+65B0C -30~+65B0C
Safety Standards Compliance to EN60950-1
EMC Standards Compliance to EN55022 class A (class B for TN-1500), E-Mark, EN61000-4-2,3,4,5,6,8,11, ENV50204
