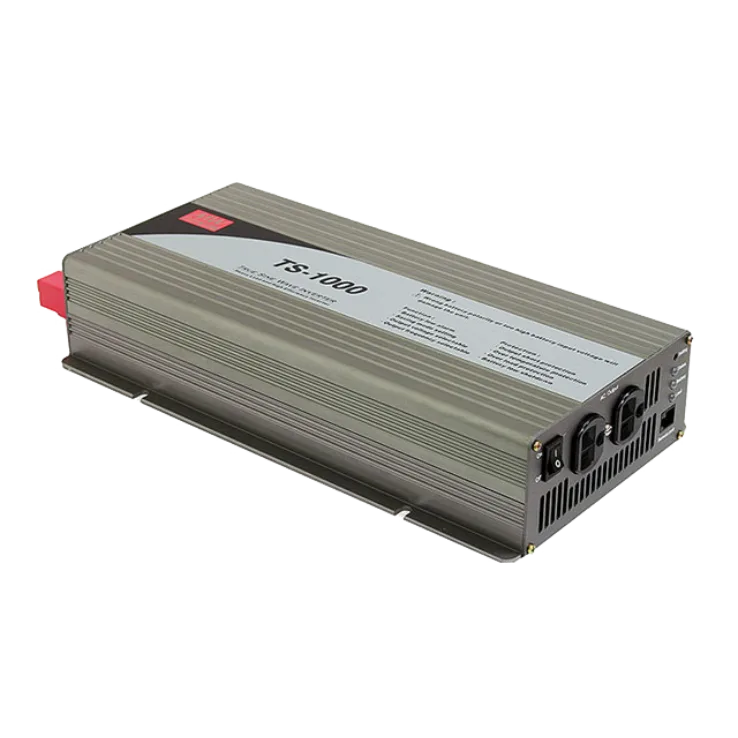

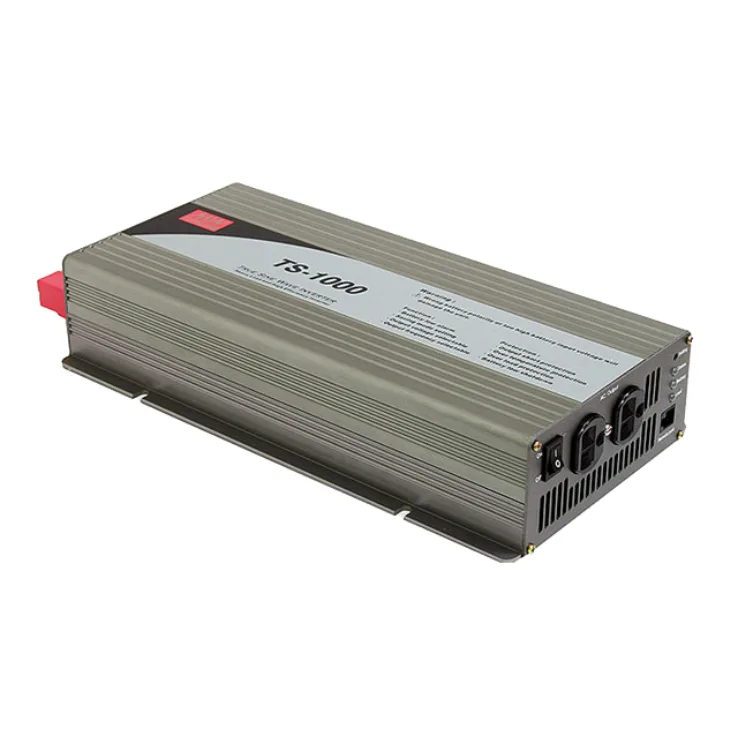

Mean Well TS-1000 Series Inverters 1000W

Download Datasheet
Models:
  • TS-1000-212B
  • TS-1000-224B
  • TS-1000-248B
Manufacturer: Mean Well
Type: Inverters

TS-1000 Series Features:

True sine wave output (THD <3%)

Output Protections: Short circuit / Overload / Over temp.

Input Protections: Bat. Low alarm / Bat. Low shutdown / Reverse polarity / Over Voltage

Applications: Home appliance, power tools, office and portable equipment, vehicle and yacht…etc.

Other Features:

  • 2 times high surge power for motor related application
  • Advanced digital control by microprocessor
  • High efficiency up to 92%
  • Standby saving mode to converse energy
  • Built in fan ON/OFF control function
  • Output voltage / frequency adjustable
  • Front panel indicator for load / battery / operation status
  • High frequency design
  • 3 years warranty
Wattage 1000 1000 1000
Input Voltage 10.5-15VDC 21.0-30VDC 42.0-60VDC
Output Current 0 0 0
Output Voltage 230 230 230
Output Voltage Options Single Single Single
DC output adjustment N/A 0 N/A
Dimensions 345 x 184 x 70 345 x 184 x 70 345 x 184 x 70
Working Temperature -10~+60B0C
Safety Standards Compliance to EN60950-1
EMC Standards Compliance to EN55022 class A (class B for TS-1500), EN61000-4-2,3,8, ENV50204
