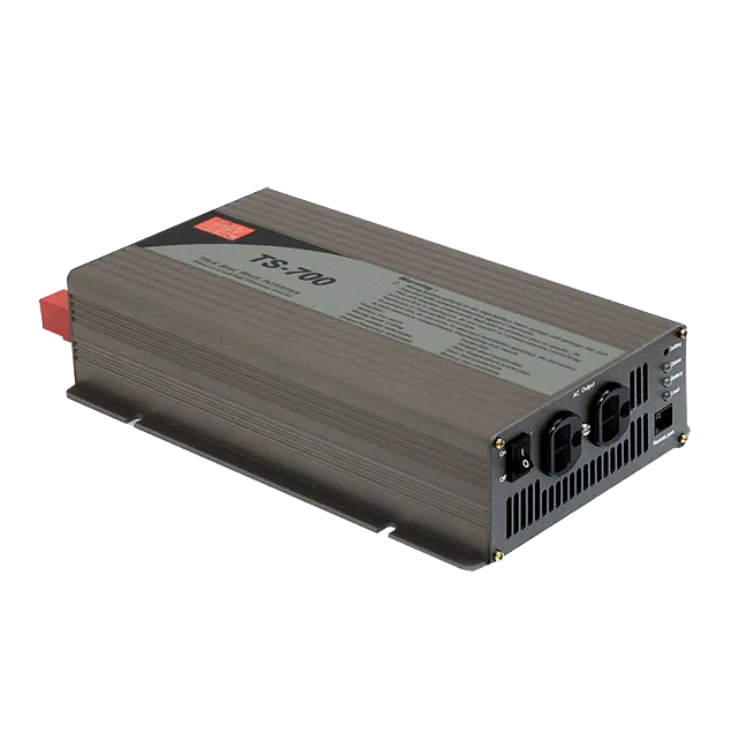

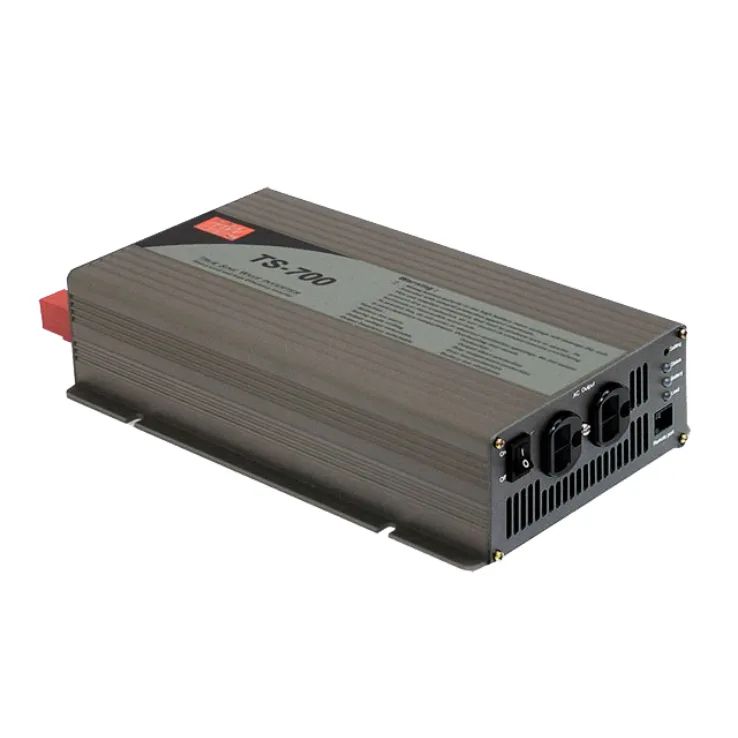

Mean Well TS-700 Series Inverters 700W

Download Datasheet
Models:
  • TS-700-212B
  • TS-700-224B
  • TS-700-248B
Manufacturer: Mean Well
Type: Inverters

TS-700 Series Features:

True sine wave output (THD <3%)

Output Protections: Short circuit / Overload / Over temp.

Input Protections: Bat. Low alarm / Bat. Low shutdown / Reverse polarity / Over Voltage

Applications: Home appliance, power tools, office and portable equipment, vehicle and yacht…etc.

Other Features:

  • 2 times high surge power for motor related application
  • Advanced digital control by microprocessor
  • Output voltage / frequency adjustable
  • High efficiency up to 91%
  • Standby saving mode to converse energy (TS-700)
  • Built in fan ON/OFF control function (TS-400 / 700)
  • Fanless design, cooling by free air convection (TS-200)
  • Front panel indicator for load / battery / operation status
  • High frequency design
  • 3 years warranty
Wattage 700 700 700
Input Voltage 10.5-15VDC 21.0-30VDC 42.0-60VDC
Output Current 0 0 0
Output Voltage 230 230 230
Output Voltage Options Single Single Single
DC output adjustment N/A N/A N/A
Dimensions 295 x 184 x 70 295 x 184 x 70 295 x 184 x 70
Working Temperature -10~+40B0C
Safety Standards Compliance to EN60950-1
EMC Standards Compliance to EN55022 class A, E-Mark, EN6100-4-2,3,8,ENV50204
