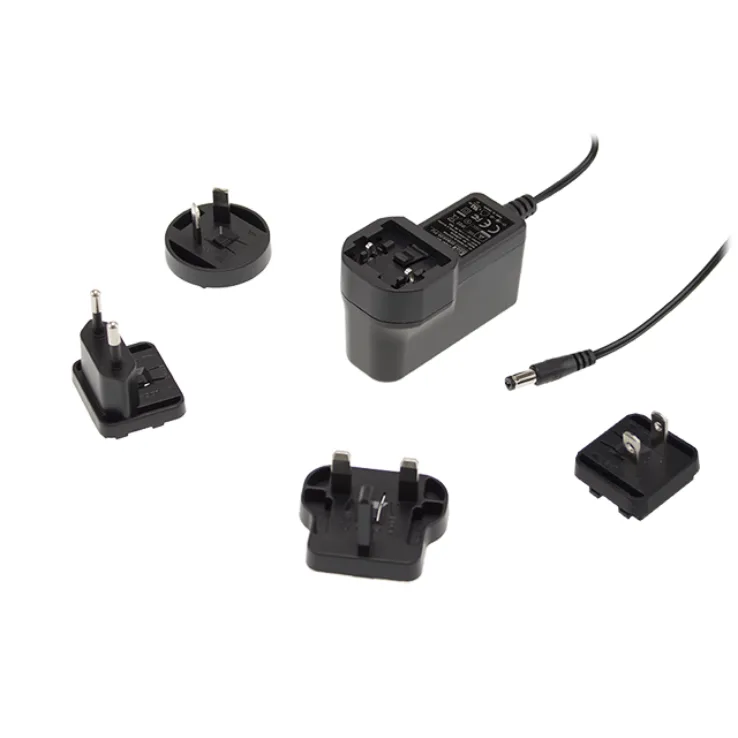

MEAN WELL GEM06I Series Medical Grade Power Supplies 6W

Models:	GEM06 05-P1J GEM06 05-USB GEM06 06-P1J GEM06 07-P1J GEM06 09-P1J GEM06 12-P1J GEM06 15-P1J GEM06 18-P1J GEM06 24-P1J
Manufacturer:	MEAN WELL
Type:	Medical Grade Power Supplies

GEM06I Series Features:

Interchangeable AC plugs (plug kit sold sperately)

Medical safety approved (2 x MOPP) accroding to ANSI/AAMI ES60601-1/ES60601-1-11,EN60601-1/EN60601-1-11

Other features:

Spec	GEM06 05-P1J	GEM06 05-USB	GEM06 06-P1J	GEM06 07-P1J	GEM06 09-P1J	GEM06 12-P1J	GEM06 15-P1J	GEM06 18-P1J	GEM06 24-P1J
Wattage	6	6	6	6	6	6	6	6	6
Input Voltage	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC	80~264VAC, 113~370VDC
Output Current	1.2A	1.2A	1A	0.8A	0.66A	0.5A	0.4A	0.33A	0.25A
Output Voltage	5	5	6	7.5	9	12	15	18	24
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single	Single	Single
Dimensions	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5	73.9 x 39 x 48.5
Working Temperature	-20 - +70°C
Safety Standards	TUV EN60601-1/EN60601-1-11,ANSI/ AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 3 edition,approvedrdEAC TP TC 004GEM06 05-USB without EN60601-1-11 , ANSI/ AAMII ES60601-1-11
EMC Standards	EN55011 (CISPR11),FCC PART 15 and 18/ CISPR22, EN61000-3-2,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
