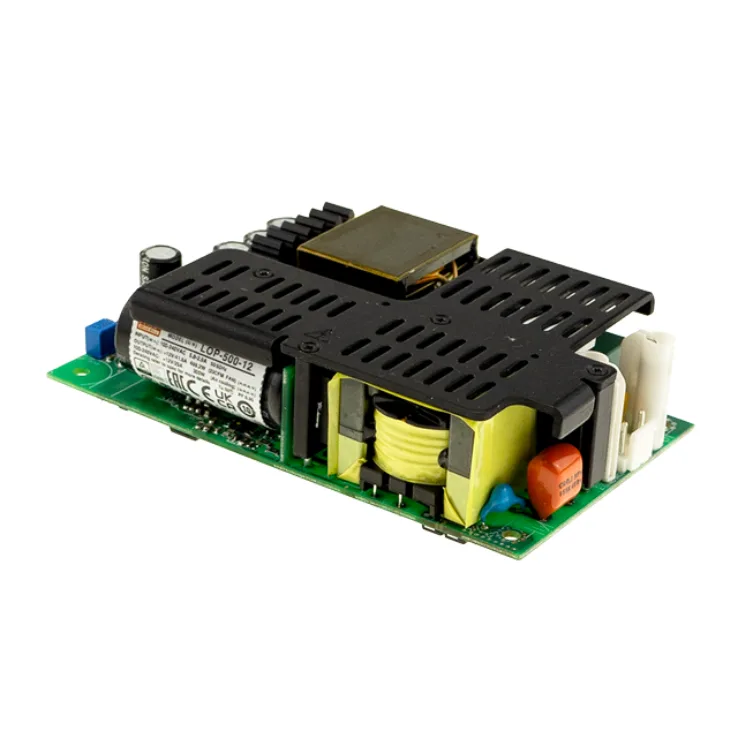

MEAN WELL LOP-500 Series Open Frame Power Supplies 500W

Download Datasheet
Models:
  • LOP-500-12
  • LOP-500-15
  • LOP-500-18
  • LOP-500-24
  • LOP-500-27
  • LOP-500-36
  • LOP-500-48
  • LOP-500-54
Manufacturer: MEAN WELL
Type: Open Frame Power Supplies

LOP-500 Series Features:

LOP-500 is a 500W highly reliable green PCB type low profile power supply with a high power density on the 5" by 3" footprint

Features:
MEAN WELL Patent Number: ZL 202223277512.1
5" x 3" compact size with low profile (30.5mm)
80~264Vac input with PFC, No load power consumption<0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
150% peak load @ 3s
320W convection, 500W with FAN 23CFM forced-cooled
Suitable for Class I or Class II installations
Overt voltage category III (OVC III)
-40 ~ +80C wide range operation temperature
High efficiency up to 95%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
Built-in Remote sense
3 years warranty

Wattage 500 500 500 500 500 500 500 500
Input Voltage 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC
Output Current 41.6A 33.3A 27.8A 20.9A 18.5A 13.9A 10.4A 9.3A
Output Voltage 11.4~12.6V 14.3~15.8V 17.1~18.9V 22.8~25.2V 25.6 ~ 28.4V 34.2 ~37.8V 45.6 ~50.4V 52 ~58V
Dimensions 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H) 127*76.2*30.5mm (L*W*H)
Working Temperature -40 ~ +80℃ (Refer to "Derating Curve")
Safety Standards CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved
EMC Standards BS EN/EN55032(CISPR32) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3
