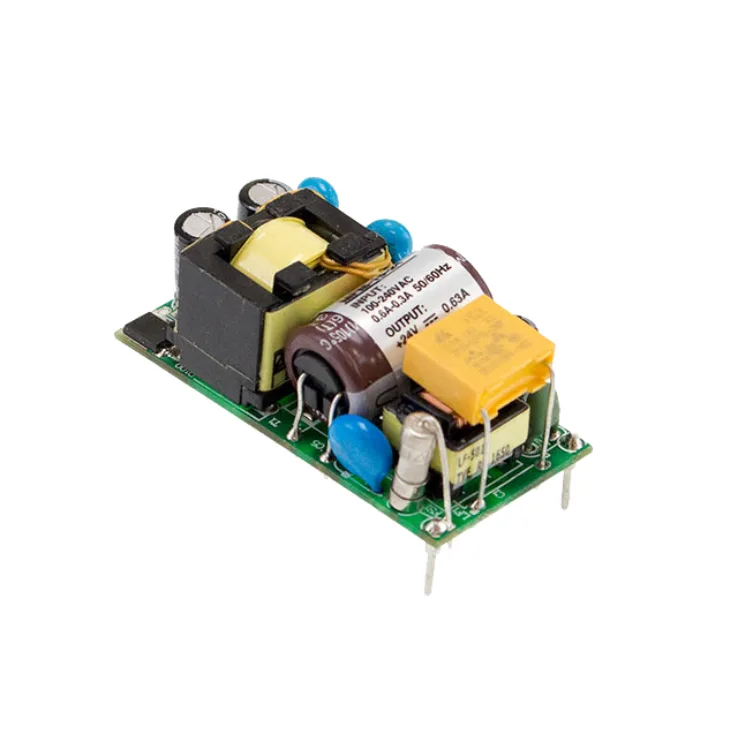

MEAN WELL MFM-15 Series Open Frame Power Supplies 11.6–15.1W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
MFM-15 Series Features:
MFM-15 is a 15W high density and small size (49*23.8*23mm) AC/DC on board type medical power supply series.
Features:
- 1.93"x0.94" compact size
- Medical safety approved (2c MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN606601-1
- Suitable for BF application with appropriate system consideration
- No load power consumption <0.1W
- Extremely low leakage current
- Wide operating temp.range -35~+85°C
- EMI class B for class II configuration
- Protections: short circuit/overload/ over voltage/over temperature
- No minimum load required
- 3 years warranty
| Wattage | 11.6 | 15 | 15 | 15 | 15.1 |
|---|---|---|---|---|---|
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC |
| Output Current | 3.5A | 3A | 1.25A | 1A | 0.63A |
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V |
| Dimensions | 49*23.8*23mm | 49*23.8*23mm | 49*23.8*23mm | 49*23.8*23mm | 49*23.8*23mm |
| Working Temperature | -35~+85°C | ||||
| Safety Standards | IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved | ||||
