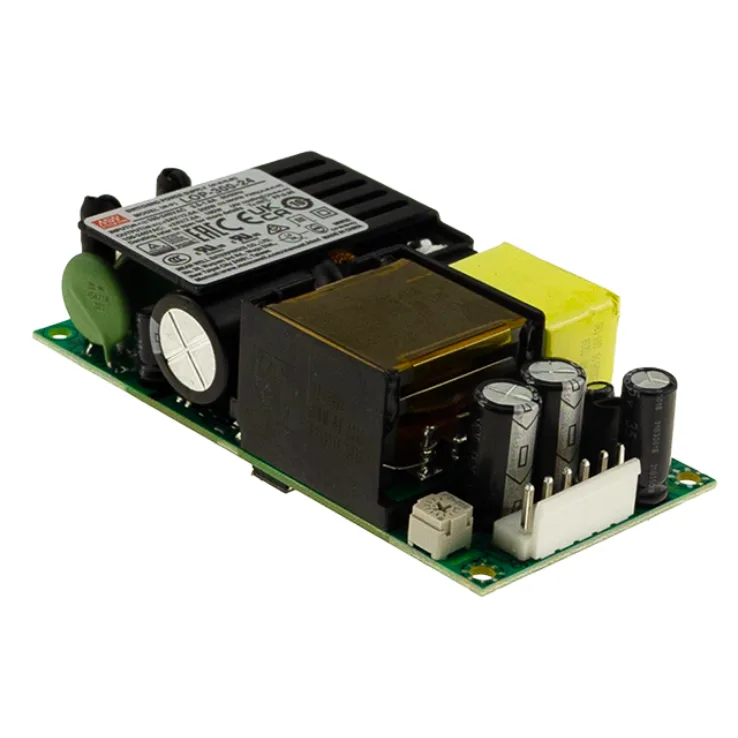

MEAN WELL LOP-300 Series Open Frame Power Supplies 300W

Download Datasheet
Models:
  • LOP-300-12
  • LOP-300-15
  • LOP-300-18
  • LOP-300-24
  • LOP-300-27
  • LOP-300-30
  • LOP-300-36
  • LOP-300-48
  • LOP-300-54
Manufacturer: MEAN WELL
Type: Open Frame Power Supplies

LOP-300 Series Features:

LOP-300 is a 300W highly reliable green PCB type low profile power supply with a high power density on the 4" by 2" footprint

Features:
MEAN WELL Patent Number: ZL 202223277512.1
4" x 2" compact size with low profile (25.4mm)
80~264Vac input with PFC, No load power consumption<0.5W
Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
150% peak load @3s
180W convection, 300W with FAN 10.98CFM forced-cooled
Suitable for Class I or Class II installations
Over voltage category III (OVC III)
-40 ~ +80C wide range operation temperature
High Efficiency up to 94%
Protections: Short circuit / Overload / Over voltage / Over temperature
Extremely low leakage current
Operating altitude up to 5000 meters
Built-in 12V/0.5A for external FAN
3 years warranty

Wattage 300 300 300 300 300 300 300 300 300
Input Voltage 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC 80 ~ 264VAC 113 ~ 370VDC
Output Current 25A 20A 16.7A 12.5A 11.1A 10A 8.3A 6.3A 8.3A
Output Voltage 11.4~12.6V 14.3~15.8V 17.1~18.9V 22.8~25.2V 25.6~28.4V 28.5 ~31.5V 34.2 ~37.8V 45.6 ~50.4V 52 ~58V
Dimensions 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H) 101.6*50.8* 25.4mm (L*W*H)
Working Temperature -40 ~ +80℃ (Refer to "Derating Curve")
Safety Standards CB IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC60601-1; TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN60601-1(3.2 Version); UL UL62368-1, ANSI / AAMI ES60601-1(3.2 Version) ; CCC GB4943.1 ; RCM AS/NZS 61558-1/-2-16; EAC TPTC 004 approved
EMC Standards BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3 BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3 BS EN/EN55032(CISPR32) BS EN/EN55011(CISPR11) BS EN/EN55014(CISPR32) BS EN/EN61000-3-2 BS EN/EN61000-3-3
