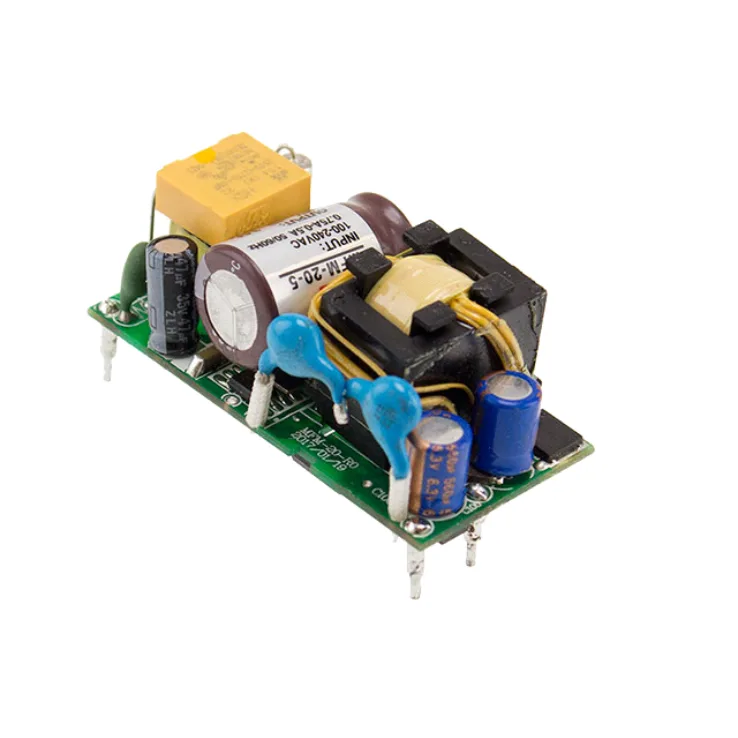

Mean Well MFM-20 Series Open Frame Power Supplies 14.9–21.6W

Download Datasheet
Models:
  • MFM-20-3.3
  • MFM-20-5
  • MFM-20-12
  • MFM-20-15
  • MFM-20-24
Manufacturer: Mean Well
Type: Open Frame Power Supplies

MFM-20 Series Features:

MFM-20 is a 20W high density and small size (49*23.8*23mm) AC/DC on board type medical power supply series.

Features:

  • 1.93"x0.94" compact size
  • Medical safety approved (2 x MOPP)49*23.8*23mmccording to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system consideration
  • No load power consumption <0.1W
  • Extremely low leakage current
  • Wide operating temp.range -35~+85°C
  • EMI class B for class II configuration
  • Protections: short circuit/ overload/ over voltage/ over temperature
  • No minimum load required
  • 3 years warranty
Wattage 14.9 20 21.6 21 21.6
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 4.5A 4A 1.8A 1.4A 0.9A
Output Voltage 3.3V 5V 12V 15V 24V
Dimensions 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm 49*23.8*23mm
Working Temperature -35~+85°C
Safety Standards IEC60601-1, EN60601-1, IEC60335-1, EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1version), CAN/CSA-C22 3rd edition approved
