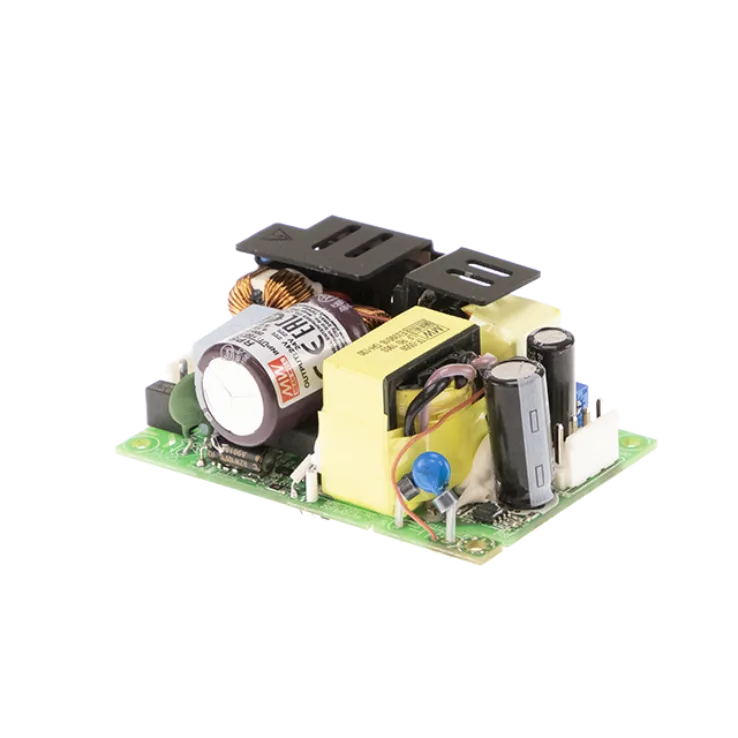

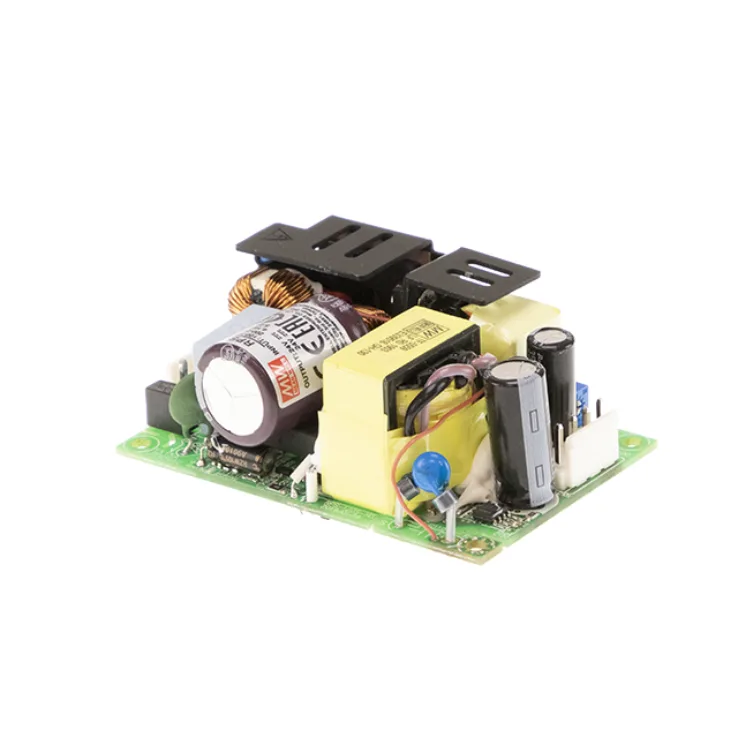

MEAN WELL EPP-120S Series Open Frame Power Supplies 114–199.9W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Open Frame Power Supplies |
EPP-120S Series Features:
EPP-120S is a 120W highly reliable green PCB type power supply with a high power density on the 3" by 2"footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.
Features:
- 3" x 2" compact size
- 120W convection, 150W peak (10 sec)
- EMI for both Class I & Class II configuration
- -30~+85°C wide range operating temperature
- No load power consumption <0.3W
- High efficiency up to 94%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Operating altitude up to 5000 meters (Note.5)
- 3 years warranty
| Wattage | 114 | 114 | 120 | 199.9 | 120 |
|---|---|---|---|---|---|
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC |
| Output Current | 9.5A | 7.6A | 5A | 4.44A | 2.5A |
| Output Voltage | 12V | 15V | 24V | 27V | 48V |
| Output Voltage Options | 11.4~12.6V | 14.3~15.8V | 22.8~25.2V | 25.6~28.4V | 45.6~50.4V |
| Dimensions | 76.2*50.8*28mm | 76.2*50.8*28mm | 76.2*50.8*28mm | 76.2*50.8*28mm | 76.2*50.8*28mm |
| Working Temperature | -30~+85°C | ||||
| Safety Standards | UL62368-1, TUV EN62368-1, EN60335-1, IEC62368-1, EAC TP TC 004 approved | ||||
| EMC Standards | EN55032 (CISPR32), EN61000-3-2, EN61000-3-3 | ||||
