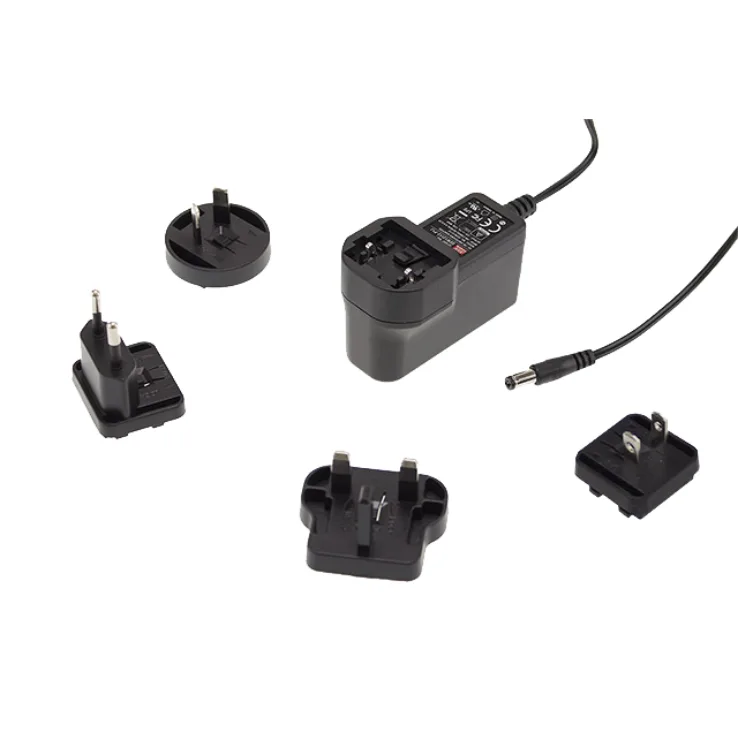

MEAN WELL GEM12I Series Medical Grade Power Supplies 12W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | Medical Grade Power Supplies |
GEM12I Series Features:
Medical safety approved (2xMOPP) according to AAMI/ANSI ES60601-1/ES60601-1-11 and IEC60601-1
Interchangeable AC plugs (plug kit sold seperately)
Energy efficiency level VI
Protections: Short circuit/ Overload/ Over voltage
Other features:
- Suitable for BF application with appropriate system consideration
- Low leakage current <100A
- No load power consumption <0.075W
- Comply with EISA 2007/DoE and EU ErP
- Class II power (without earth pin)
- Fully enclosed plastic case
- Optional lock type DC plug
- 5 years warranty
| Wattage | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
|---|---|---|---|---|---|---|---|---|
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC |
| Output Current | 2.4A | 1.6A | 1.33A | 1A | 0.8A | 0.66A | 0.5A | 0.25A |
| Output Voltage | 5 | 7.5 | 9 | 12 | 15 | 18 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single |
| Dimensions | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 | 73.9x 39x 48.5 |
| Working Temperature | -20-+70°C | |||||||
| Safety Standards | IEC60601-1, TUV EN60601-1/EN60601-1-11, AAMI/ANSI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22 3rd edition approved | |||||||
| EMC Standards | Compliance to EN55011 class B, EN61000-3-2-3, FCC PART 15 / CISPR22 class B, Compliance to EN61000-4,-2,3,4,5,6,8,11, light industry level, criteria A | |||||||
