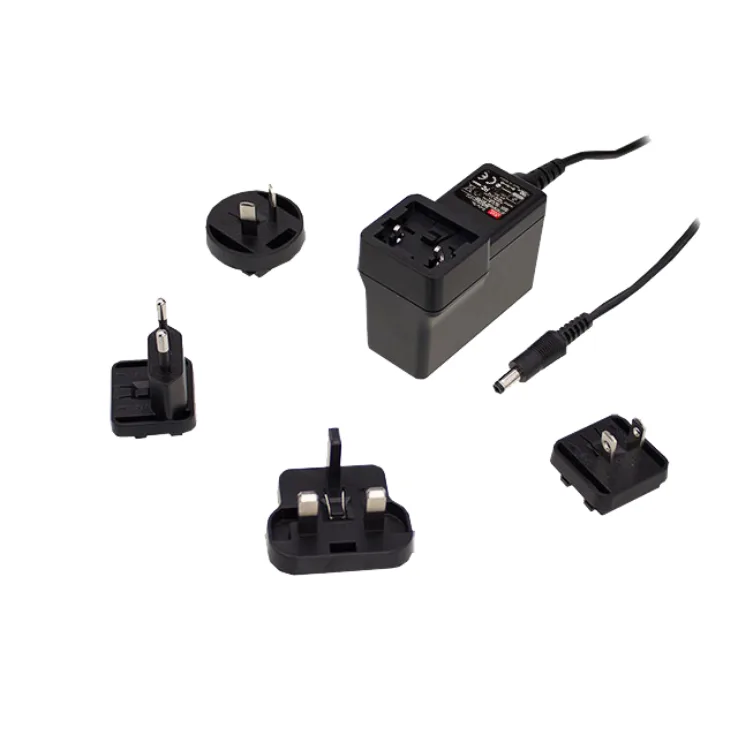

MEAN WELL GEM30I Series Medical Grade Power Supplies 20–30W

Download Datasheet
Models:
  • GEM30I05-P1J
  • GEM30I07-P1J
  • GEM30I09-P1J
  • GEM30I12-P1J
  • GEM30I15-P1J
  • GEM30I18-P1J
  • GEM30I24-P1J
  • GEM30I48-P1J
Manufacturer: MEAN WELL
Type: Medical Grade Power Supplies

GEM30I Series Features:

No load power consumption 01.W

Protections: Short circuit/ Overload/ Over voltage

Other features:

  • Interchangeable AC plugs (plug kit sold separately)
  • Medical safety approved (2x MOPP between primary to secondary)
  • Low leakage current <100A
  • Energy efficiency level VI
  • Comply with EISA 2007/DoE and EU ErP
  • Full enclosed plastic case
  • Class II power unit, (without earth pin)
  • Optional lock type DC plug
  • 100% full load burn-in test
  • 3 years warranty
Wattage 20 25 30 30 30 30 30 30
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 4A 3.33A 3.33A 2.5A 2A 1.66A 1.25A 0.625A
Output Voltage 5 7.5 9 12 15 18 24 48
Output Voltage Options Single Single Single Single Single Single Single Single
Dimensions 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2 75.5x 39.1x 56.2
Working Temperature -25-+70°C
Safety Standards ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved
EMC Standards Compliance to EN55011 Class B, EN61000-3-2,3, FCC PART 15 / CISPR22 Class B,Compliance to EN61000-4-2,3,4,5,6,8,11 , light industry level, criteria A.
