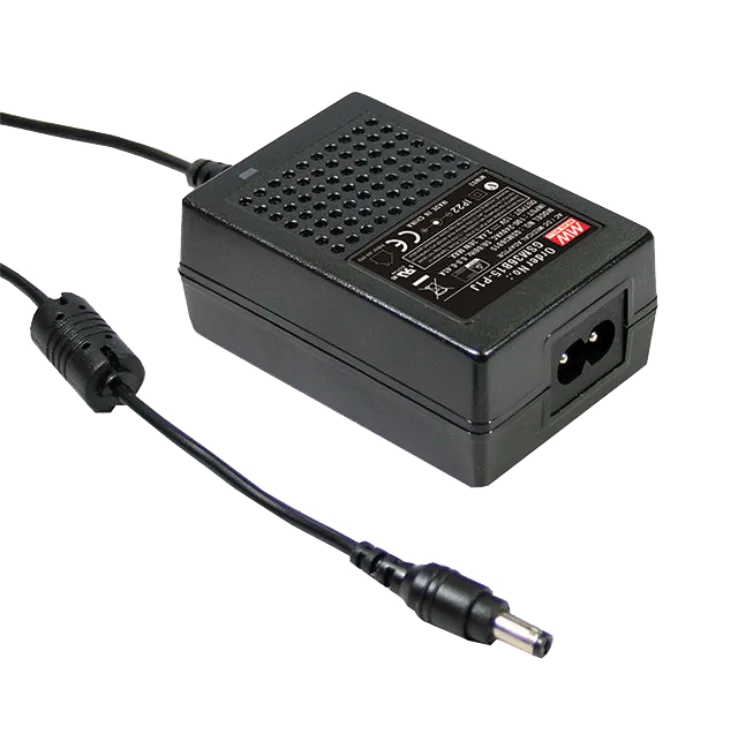

Mean Well GSM18B Series Medical Grade Power Supplies 15–18W

Download Datasheet
Models:
  • GSM18B05-P1J
  • GSM18B07-P1J
  • GSM18B09-P1J
  • GSM18B12-P1J
  • GSM18B15-P1J
  • GSM18B18-P1J
  • GSM18B24-P1J
  • GSM18B48-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM18B Series Features:

Medical safety approved (2 × MOPP between primary to secondary)

Low leakage current <50 A

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8
  • High efficiency up to 88%
  • Fully enclosed plastic case
  • Class b! power (without earth pin)
  • LED indicator for power on
  • No load power consumption<0.1W
  • ErP step2 compliant (level b$)
  • Meet EISA 2007 (Energy Independence and Security Act)
  • Optional lock type DC plug
  • 3 years warranty
Wattage 15 15 18 18 18 18 18 18
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~3.0 0~2.0 0~2.0 0~1.5 0~1.2 0~1.0 0~0.75 0~0.375
Output Voltage 5 7.5 9 12 15 18 24 48
Output Voltage Options Single Single Single Single Single Single Single Single
Dimensions 79x 54x 33 79x 54x 33 79x 54x 33 79x 54x 33 79x 54x 33 79x 54x 33 79x 54x 33 79x 54x 33
Working Temperature -30~+60B0C (Refer to "Derating Curve")
Safety Standards ANSI/AAMI ES60601-1 / 60601-1-11, TUV EN60601-1 / 60601-1-11 approved
EMC Standards Compliance to EN55011(CISPR11) class B, EN61000-3-2,3, FCC PART 18 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A
