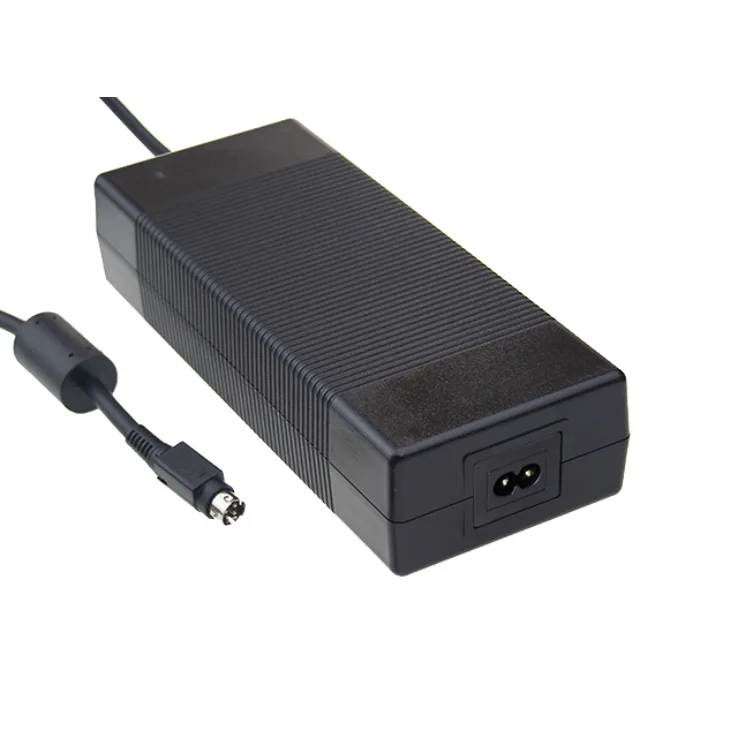

Mean Well GSM220B Series Medical Grade Power Supplies 180–221W

Download Datasheet
Models:
  • GSM220B12
  • GSM220B15
  • GSM220B20
  • GSM220B24
  • GSM220B48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM220B Series Features:

No load power consumption <0.15W

Medical safety approved (2x MOPP between primary to secondary)

Low leakage current <100µA

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input / Full range
  • High efficiency
  • 100% full load burn-in test
  • Energy efficiency level VI
  • 2 pole AC inlet IEC320-C8
  • Fully enclosed plastic case
  • Medical safety approved (MOPP level)
  • Class II power (with earth pin)
  • Built-in active PFC function
  • LED indicator for power on
  • EU ErP and meet CoC Version 5
  • Meet EISA 2007 (Energy Independence and Security Act)
  • 3 years warranty
Wattage 180 201 220 221 221
Input Voltage 80-264VAC 80-264VAC 80-264VAC 80-264VAC 80-264VAC
Output Current 15A 13.4A 11A 9.2A 4.6A
Output Voltage 12 15 20 24 48
Output Voltage Options Single Single Single Single Single
DC output adjustment 113-370V 113-370V 113-370V 113-370V 113-370V
Dimensions 210x 85x 46 210x 85x 46 210x 85x 46 210x 85x 46 210x 85x 46
Working Temperature -30~+70°C
Safety Standards ANSI/AAMI ES60601-1/ES60601-1-11, TUV EN60601-1/60601-1-11 approved
EMC Standards Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B, CAN ICES-3 (B)/NMB-3(B) Complaicnce to EN61000-4-2,3,4,5,6,8,11, EN5502, EN60601-1-2, EN61204-3 medical level, criteria A
