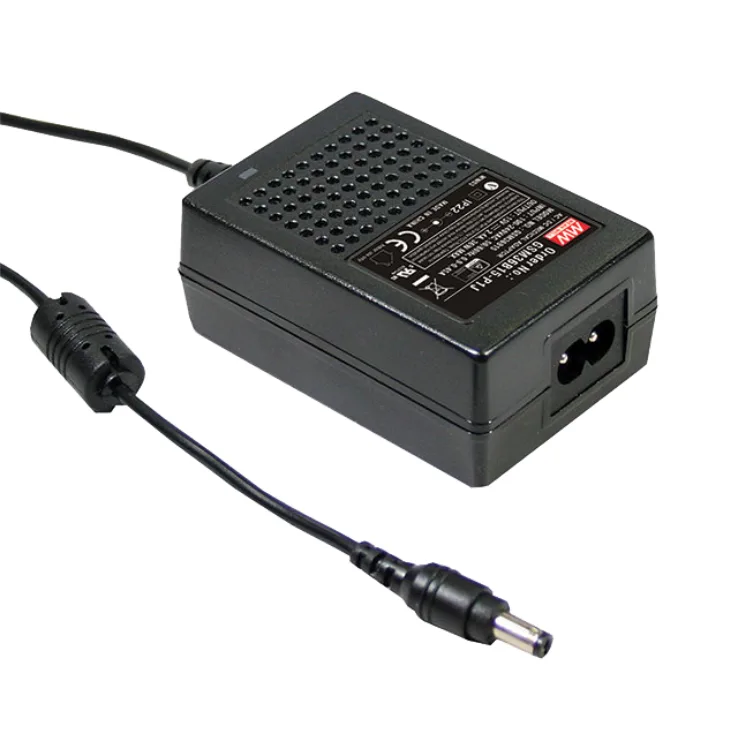

Mean Well GSM36B Series Medical Grade Power Supplies 22.5–36W

Download Datasheet
Models:
  • GSM36B05-P1J
  • GSM36B07-P1J
  • GSMB09-P1JG
  • GSM36B12-P1J
  • GSM36B15-P1J
  • GSM36B18-P1JG
  • GSM36B24-P1J
  • GSM36B48-P1J
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM36B Series Features:

Medical safety approved (2 × MOPP between primary to secondary)

High efficiency up to 88%

Low leakage current <50 A

Protections: Short circuit / Overload / Over voltage

Other features:

  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8
  • Fully enclosed plastic case
  • Class b! power (without earth pin)
  • LED indicator for power on
  • No load power consumption<0.1W
  • ErP step2 compliant (level b$)
  • Meet EISA 2007 (Energy Independence and Security Act)
  • Optional lock type DC plug
  • 3 years warranty
Wattage 22.5 32.4 36 36 36 36 36 36
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAV 80~264VAC 80~264VAC
Output Current 4.5A 4.32 4 3 2.4 2A 1.5A 0.5A
Output Voltage 5V 7.5 9 12 15 18V 24V 48V
Dimensions 79*54*33mm 79*54*33mm 79*54*33mm 79*54*33mm 79*54*33mm 79*54*33mm 79*54*33mm 79*54*33mm
Working Temperature -25~+60°C
Safety Standards ANSI/AAMI ES60601-1/ES60601-1-11(3.1Version), CAN/CSA-C22 3rd edition, TUV EN60601-1/EN60601-1-11, EAC TP TC 004 approved
EMC Standards EN55011 (CISPR11), FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B), MSIP KN32
