| Models: |
|
| Manufacturer: | MEAN WELL |

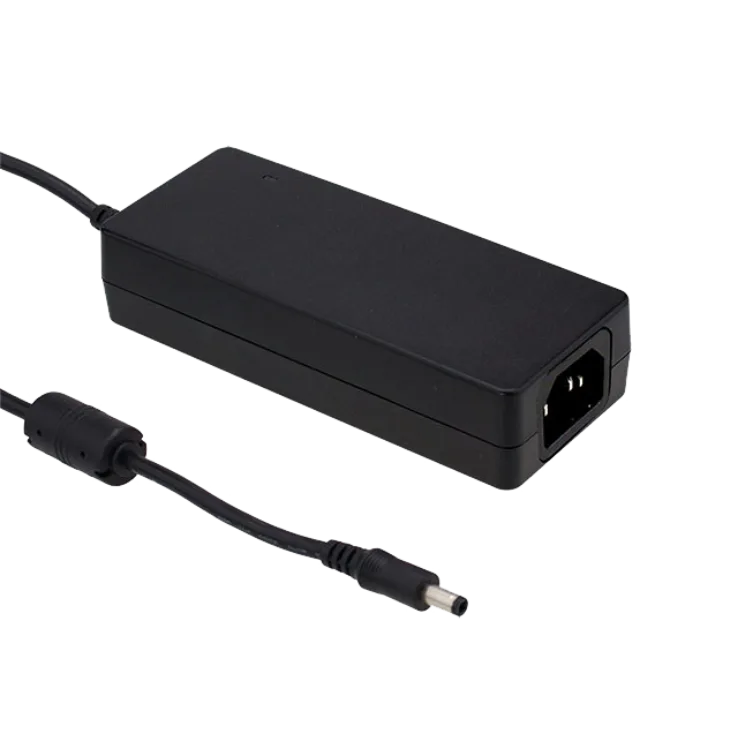

| Type: | Medical Grade Power Supplies |
No load power consumption <0.15W
Medical safety approved (2x MOPP between primary to secondary)
Low leakage current <100µA
Protections: Short circuit / Overload / Over voltage / Over temperature
Other features:
| Wattage | 80 | 90 | 90 | 90 | 90 |
| Input Voltage | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC | 80-264VAC |
| Output Current | 6.67A | 6A | 4.74A | 3.75A | 1.87A |
| Output Voltage | 12 | 15 | 19 | 24 | 48 |
| Output Voltage Options | Single | Single | Single | Single | Single |
| Dimensions | 145x 60x 32 | 145x 60x 32 | 145x 60x 32 | 145x 60x 32 | 145x 60x 32 |
| Working Temperature | -30-+70°C | ||||
| Safety Standards | ANSI/AAMI ES60601-1, TUV EN60601-1 approved | ||||
| EMC Standards | Compliance to EN55011 (CISPR11) class B, EN61000-3-2,3, FCC PART 15 class B. Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-2, EN61204-3 medical level, criteria A | ||||
