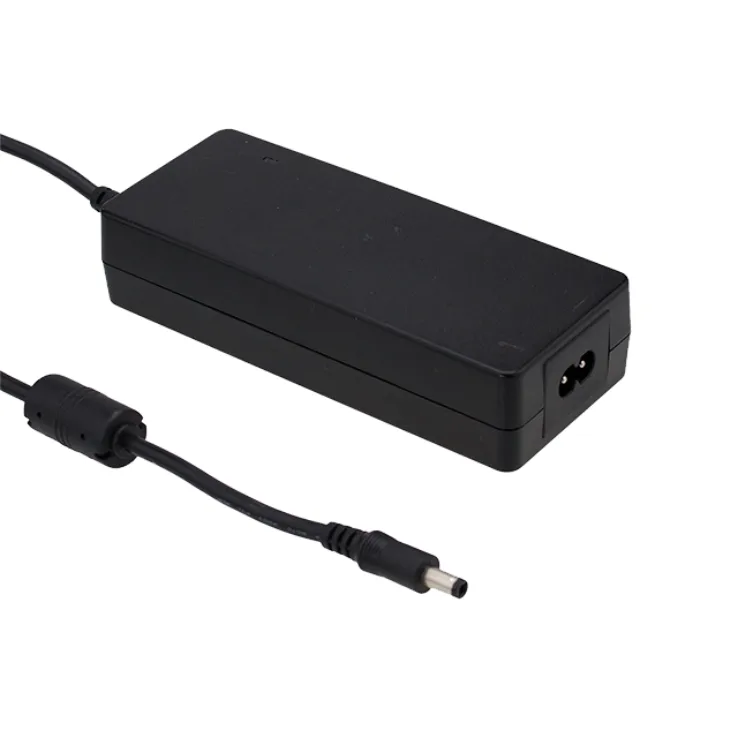

Mean Well GSM90B Series Medical Grade Power Supplies 90W

Download Datasheet
Models:
  • GSM90B12-P1M
  • GSM90B15-P1M
  • GSM90B19-P1M
  • GSM90B24-P1M
  • GSM90B48-P1M
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

GSM90B Series Features:

Medical safety approved (2 MOPP between primary to secondary)

Low leakage current <100 A

Protections: Short circuit / Overload / Over voltage / Over temperature

Other features:

  • Universal AC input/full range
  • 2 pole AC inlet IEC320-C8
  • Built-in active PFC function, PF>0.91
  • High efficiency up to 91%
  • Fully enclosed plastic case
  • Class power (without earth pin)
  • LED indicator for power on
  • No load power consumption<0.21W
  • ErP step 2 compliant (level)
  • Meet EISA 2007 (Energy Independence and Security Act)
  • 100% full load burn-in test
  • Optional lock type DC plug
  • 3 years warranty

Wattage 90 90 90 90 90
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 6.67A 6A 4.74A 3.75A 1.87A
Output Voltage 12V 15V 19V 24V 48V
Output Voltage Options Single Single Single Single Single
Dimensions 145*60*32mm 145*60*32mm 145*60*32mm 145*60*32mm 145*60*32mm
Working Temperature -40~+70°C (Refer to "Derating Curve")
Safety Standards IEC60601-1/IEC60601-1-11, EN60601-1/EN60601-1-11, ANSI/AAMI ES60601-1/ES60601-1-11(3.1 version), CAN/CSA-C22.2 No. 60601-1:14-Edition 3, EAC TP TC 004 approved
EMC Standards EN55011 (CISPR11), FCC PART 15/CISPR22, CAN ICES-3(B)/NMB-3(B)
