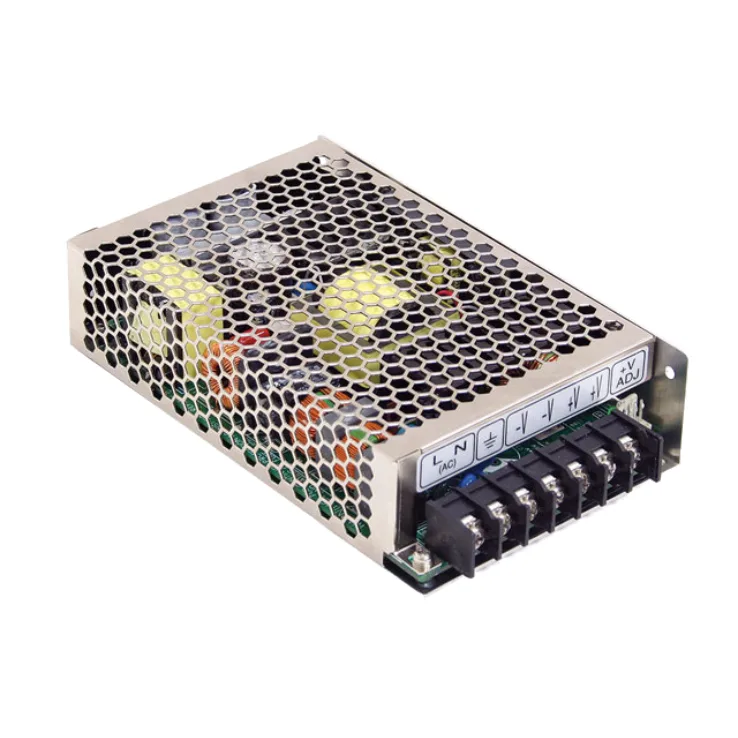

Mean Well MSP-100 Series Medical Grade Power Supplies 66–100W

Download Datasheet
Models:
  • MSP-100-3.3
  • MSP-100-5
  • MSP-100-7.5
  • MSP-100-12
  • MSP-100-15
  • MSP-100-24
  • MSP-100-36
  • MSP-100-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

MSP-100 Series Features:

No load power consumption<0.5W

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage/ Over temperature (optional)

  • Universal AC input / Full range
  • High efficiency up to 90%
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • 1U low profile 38mm
  • Medical safety approved (MOOP level)
  • Built-in remote ON-OFF control
  • All using 105°C long life electrolytic capacitors
  • 5 years warranty
Wattage 66 85 66 100 100 100 100 100
Input Voltage 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC
Output Current 0~20 0~17 0~13.5 0~8.5 0~20 0~4.5 0~2.9 0~2.2
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 3.1~3.8V 4.75~5.8 7.1~9 11.4~13.8 14.25~18V 22.8~28.8 34.2~39.6 45.6~55.2
Dimensions 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38 159x 97x 38
Working Temperature -40-+70B0C (Refer to "Derating Curve") -20 ~ +60C -40-+70B0C (Refer to "Derating Curve") -20 ~ +60C
Safety Standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
