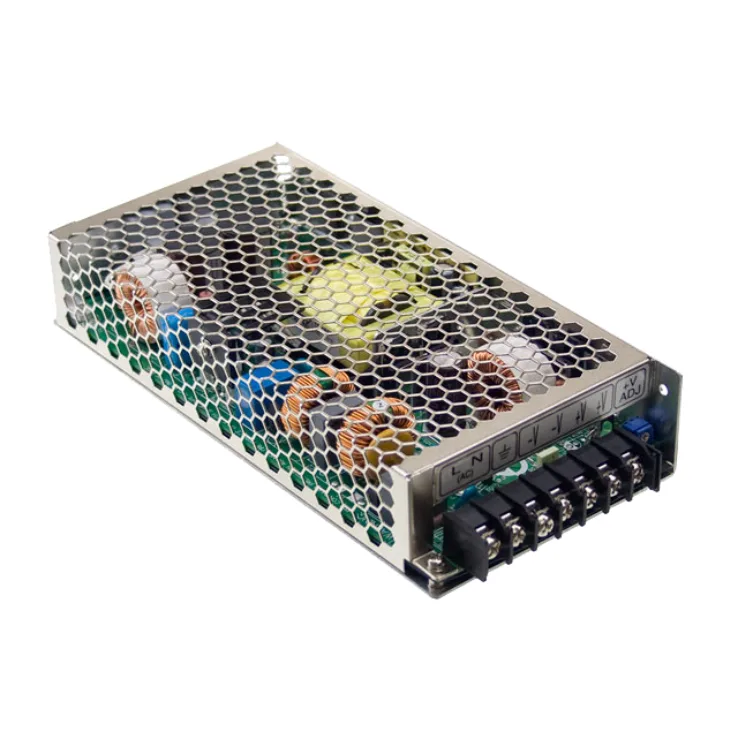

Mean Well MSP-200 Series Medical Grade Power Supplies 138–200W

Download Datasheet
Models:
  • MSP-200-3.3
  • MSP-200-5
  • MSP-200-7.5
  • MSP-200-12
  • MSP-200-15
  • MSP-200-24
  • MSP-200-36
  • MSP-200-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

MSP-200 Series Features:

No load power consumption<0.5W

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

  • Universal AC input / Full range
  • High efficiency up to 89%
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function
  • 5 years warranty
Wattage 138 180 200 200 200 200 200 200
Input Voltage 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC 85~264VAC, 120~370VDC
Output Current 0~40A 0~35 0~26.7A 0~16.7 0~13.4 0~8.4 0~5.7 0~4.3
Output Voltage 3.3 3.3 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 2.8~3.8V 4.3~5.8V 6.8~9V 10.2~13.8V 13.5~18V 21.6~28.8V 28.8~39.6V 40.8~55.2V
Dimensions 199x 98x 38 199x 98x 38 199x 98x 38 199x 98x 38 199x 98x 38 199x 98x 38 199x 98x 38 199x 98x 38
Working Temperature -20 ~ +60C -20B0C~+50B0C -40B0C~+70B0C (Refer to "Derating Curve") -20 ~ +60C -40B0C~+85B0C
Safety Standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
