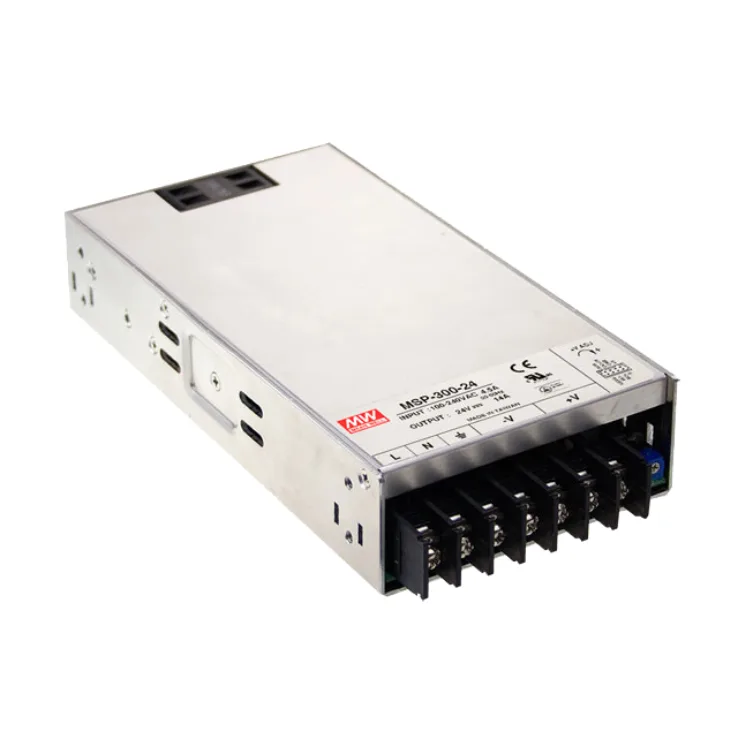

Mean Well MSP-300 Series Medical Grade Power Supplies 198–336W

Download Datasheet
Models:
  • MSP-300-3.3
  • MSP-300-5
  • MSP-300-7.5
  • MSP-300-12
  • MSP-300-15
  • MSP-300-24
  • MSP-300-36
  • MSP-300-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

MSP-300 Series Features:

Medical safety approved (MOOP level)

No load power consumption<0.5W

Built-in active PFC function, PF>0.95

Protections: Short circuit / Overload / Over voltage / Over temperature

  • Universal AC input / Full range
  • High efficiency up to 89%
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Withstand 300VAC surge input for 5 seconds
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in constant current limiting circuit
  • 1U low profile 41mm
  • Built-in remote sense function
  • 5 years warranty
Wattage 198 300 300 324 330 336 334 336
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~60.0 0~60.0 0~40.0 0~27.0 0~22.0 0~14.0 0~9.0.0 0~7.0
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 2.8~3.8 4.3~5.8 6.8~9 10.2~13.8 13.5~18.0 21.6~28.8 28.8~39.6 40.8~55.2
Dimensions 199x 105x 41 199x 105x 41 199x 105x 41 199x 105x 41 199x 105x 41 199x 105x 41 199x 105x 41 199x 105x 41
Working Temperature -20~+70B0C -20B0C~+50B0C -20~+70B0C
Safety Standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
