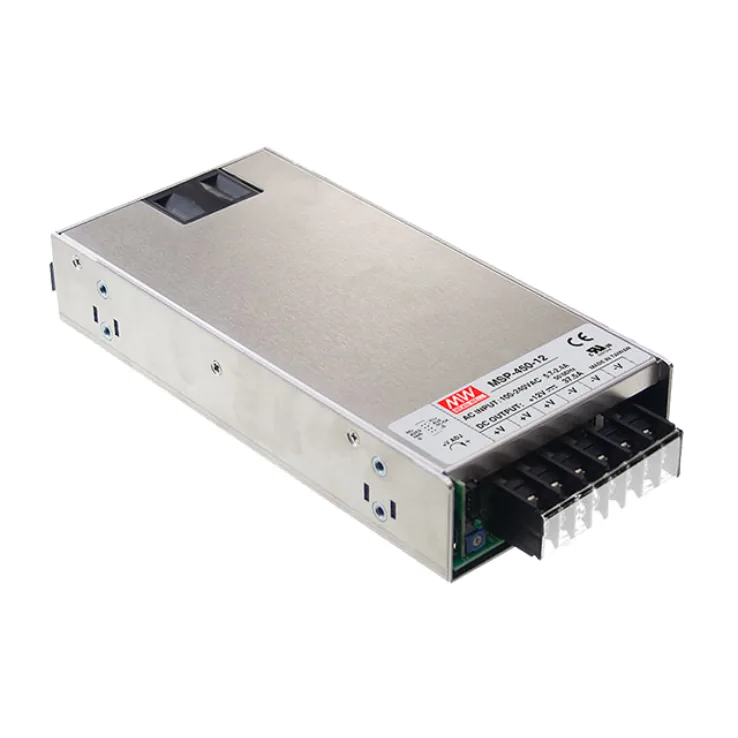

Mean Well MSP-450 Series Medical Grade Power Supplies 297–450W

Download Datasheet
Models:
  • MSP-450-3.3
  • MSP-450-5
  • MSP-450-7.5
  • MSP-450-12
  • MSP-450-15
  • MSP-450-24
  • MSP-450-36
  • MSP-450-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

MSP-450 Series Features:

Medical safety approved (MOOP level)

Built-in active PFC function PF>0.95

Protections: Short circuit/ Overload/ Over voltage/Over temperature

Other features:

  • Universal AC input/ Full range
  • High efficiency up to 89.5%
  • No load power consumption <0.5W
  • Withstand 300VAC surge
  • Built-in constant current limiting circuit
  • Built-in cooling Fan ON-OFF control
  • Built-in DC OK signal
  • Stand by 5V@0.3A
  • Built-in remote ON-OFF control
  • Built-in remote sense function
  • 5 years warranty
Wattage 297 450 450 450 450 450 450 450
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~90 0~90 0~60 0~37.5 0~30 0~18.8 0~12.5 0~9.5
Output Voltage 3.3 5 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 2.8~3.8 4.3~5.8 6.8~9 10.2~13.8 13.5~18 21.6~28.8 28.8~39.6 40.8~55.2
Dimensions 218x 105x 41 218x 105x 41 218x 105x 41 218x 105x 41 218x 105x 41 218x 105x 41 218x 105x 41 218x 105x 41
Working Temperature -20~+70°C
Safety Standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
