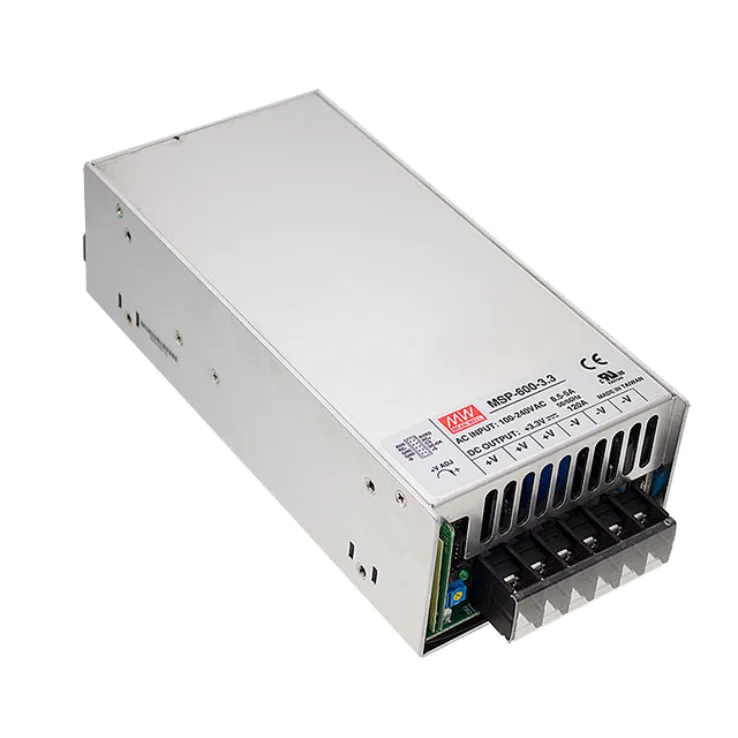

Mean Well MSP-600 Series Medical Grade Power Supplies 396–648W

Download Datasheet
Models:
  • MSP-600-5
  • MSP-600-3.3
  • MSP-600-7.5
  • MSP-600-12
  • MSP-600-15
  • MSP-600-24
  • MSP-600-36
  • MSP-600-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

MSP-600 Series Features:

Medical safety approved (MOOP level)

Universal AC input/ Full range

Built-in active PFC function, PF>0.94

No load power consumption <0.8W

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Other features:

  • High efficiency up to 89%
  • Withstand 300VAC surge input for 5 seconds
  • Built-in cooling fan ON-OFF control
  • Built-in DC OK signal
  • Built-in remote ON-OFF control
  • Standby 5V@0.3A
  • Built-in remote sense function
  • 5 years warranty
Wattage 600 396 600 636 645 648 630 624
Input Voltage 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC 85~264VAC 120~370VDC
Output Current 0~120A 0~120A 0~80A 0~53A 0~43A 0~27A 0~17.5A 0~13A
Output Voltage 5 3.3 7.5 12 15 24 36 48
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment 4.3~5.8V 2.8~3.8V 6.8~9V 10.2~13.8V 13.5~18V 21.6~28.8V 28.8~39.6V 40.8~55.2V
Dimensions 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5 218x 105x 63.5
Working Temperature -20~+70B0C
Safety Standards ANSI/AAMI ES60601-1, IEC60601-1 approved
EMC Standards Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
