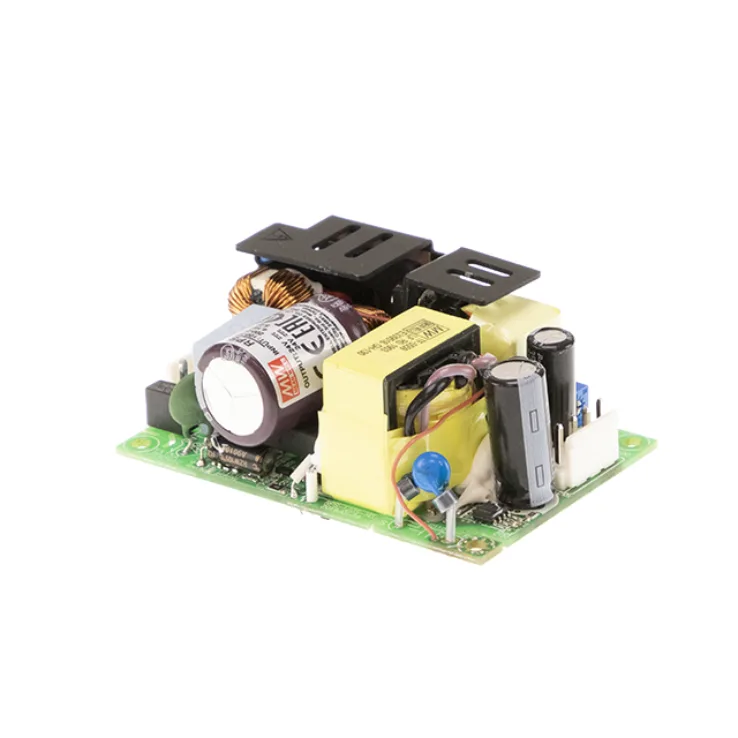

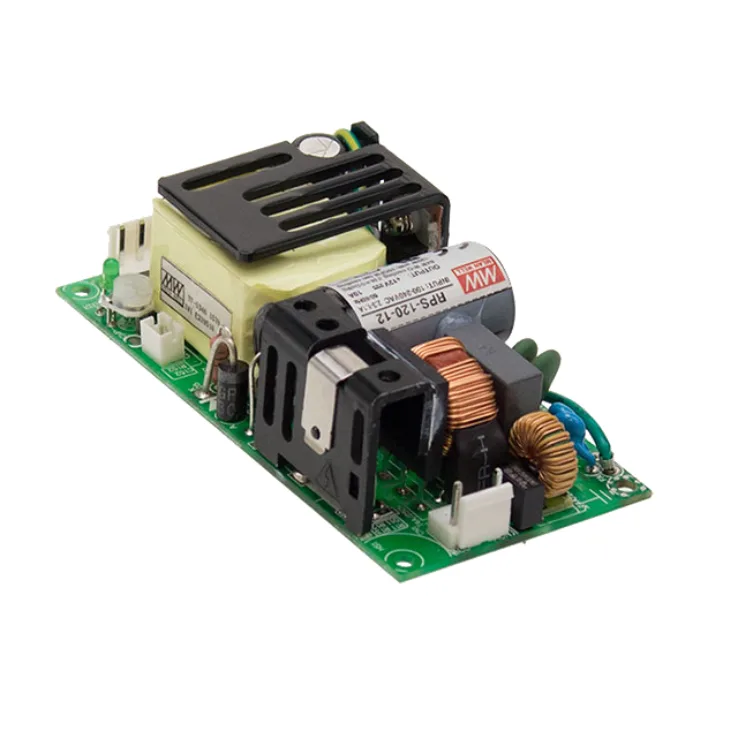

Mean Well RPS-120 Series Medical Grade Power Supplies 84–120W

Download Datasheet
Models:
  • RPS-120-12
  • RPS-120-15
  • RPS-120-24
  • RPS-120-27
  • RPS-120-48
  • RPS-120S-12
  • RPS-120S-15
  • RPS-120S-24
  • RPS-120S-27
  • RPS-120S-48
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-120 Series Features:

No load power consumption <0.1W

Protections: Short circuit / Overload / Over voltage

Other Features:

  • 3"x2" miniatures size
  • Universal AC Input / Full range
  • Medical safety approved
  • Low leakage current <100uA
  • Class II (without FG) istallations
  • Suitable for BF application with appropriate system consideration
  • High efficiency up to 91%
  • For 1U applications
  • -30~70°C wide range of operating temperature
  • Operating altitude up to 4000 meters
  • LED indicator for power on
  • Cooling by free air convection
  • 3 years warranty
Wattage 84 84 84 85 84 120 120 120 120 120
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80-264VAC, 113- 370VDC 80-264VAC, 113- 370VDC 80-264VAC, 113- 370VDC 80-264VAC, 113- 370VDC 80-264VAC, 113- 370VDC
Output Current 0~7 0~5.6 0~3.5 0~3.15 0~1.75 9.5A 7.6A 5A 4.44A 2.5A
Output Voltage 12 15 24 27 48 12 15 24 27 48
Output Voltage Options Single Single Single Single Single Single Single Single Single Single
DC output adjustment 11.4-12.6V 14.3-15.8V 22.8-25.2V 25.6-28.4V 45.6-50.4V
Dimensions 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 101.6 x 50.8 x 29 76.2 x 50.8 x 28 76.2 x 50.8 x 28 76.2 x 50.8 x 28 76.2 x 50.8 x 28 76.2 x 50.8 x 28
Working Temperature -30~+70°C
Safety Standards ANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved IEC60601-1, TUV EN60601-1, EAC TP TC 004, UL ANSI/ AAMI ES60601-1 (3.1 version), CAN/CSA-C22.2 No. 60601-1 :14 - Edition 3 approved; Design refer to EN60335-1 (By request)
EMC Standards EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A EN55011 (CISPR11), EN61000-3-2 ,EN61000-3-3, EN61000-4-2 ,3,4,5,6,8,11
