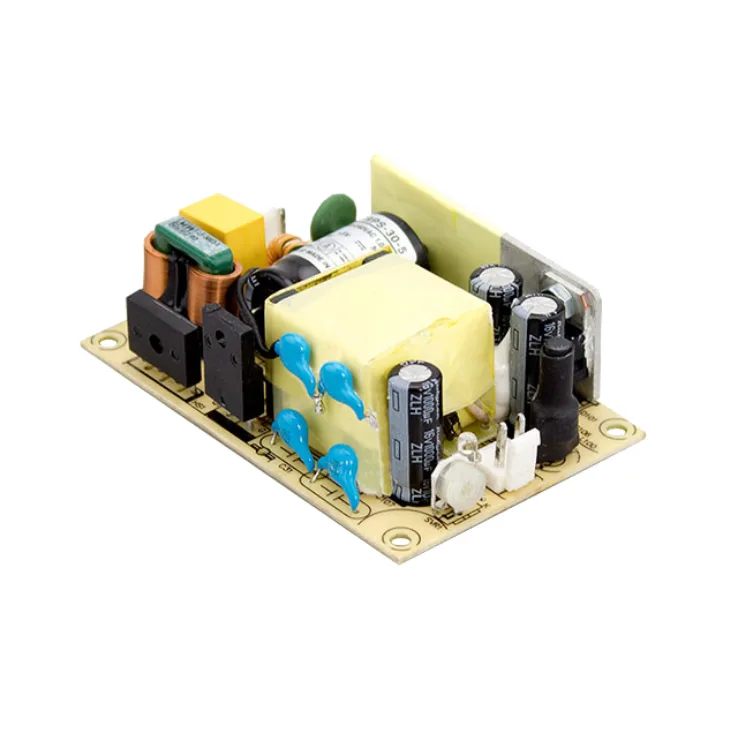

MEAN WELL RPS-30 Series Medical Grade Power Supplies 19.8–30W

Models:	RPS-30-3.3 RPS-30-5 RPS-30-7.5 RPS-30-12 RPS-30-15 RPS-30-24 RPS-30-48
Manufacturer:	MEAN WELL
Type:	Medical Grade Power Supplies

RPS-30 Series Features:

No load power consumption <0.1W

Protections: Short circuit / Overload / Over voltage

Other Features:

Spec	RPS-30-3.3	RPS-30-5	RPS-30-7.5	RPS-30-12	RPS-30-15	RPS-30-24	RPS-30-48
Wattage	19.8	30	30	30	30	30	30
Input Voltage	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC
Output Current	0~6.6	0~6.6	0-4.4	0~2.75	0~2.2	0~1.375	0~0.687
Output Voltage	3.3	5	7.5	12	15	24	48
Output Voltage Options	Single	Single	Single	Single	Single	Single	Single
DC output adjustment	3.1-3.6V	4.7-5.5V	7.12-8.2V	11.4-13.2	13.5-16.5	22.8-27.6	45.6-52.8
Dimensions	76.2 x 50.8 x 24	76.2 x 50.8 x 24	76.2 x 50.8 x 24	76.2 x 50.8 x 24	76.2 x 50.8 x 24	76.2 x 50.8 x 24	76.2 x 50.8 x 24
Working Temperature	-30~+70°C
Safety Standards	ANSI/AAMI ES60601-1, TUV EN60601-1, EN6060-1-1-1 approved
EMC Standards	EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
