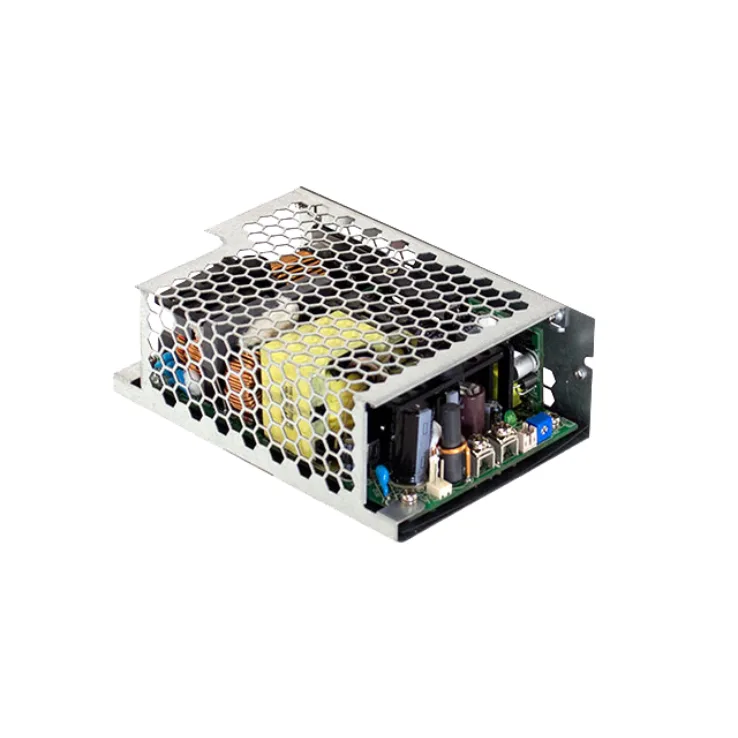

Mean Well RPS-400-C Series Medical Grade Power Supplies 399.6–403.2W

Download Datasheet
Models:
  • RPS-400-12-C
  • RPS-400-15-C
  • RPS-400-18-C
  • RPS-400-24-C
  • RPS-400-27-C
  • RPS-400-36-C
  • RPS-400-48-C
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-400-C Series Features:

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V.

Features:

  • 5"x3" compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system configuration
  • 250W convection, 400W force air
  • EMI Class B for Class I & Class A for Class II configuration
  • No load power consumption <0.5W by PS-ON control
  • 5Vdc standby output, 12 Vdc fan supply, Power Good, Power Fail and remote sense
  • Protections: Short circuit/ Overload/ Over voltage/ Over temperature
  • Operating altitude up to 4000 metres
  • 3 years warranty
Wattage 399.6 400.5 401.4 400.8 402.3 403.2 403.2
Input Voltage 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC 80~264VAC
Output Current 0~33.3 0~26.7 22.3A 0~16.7 0~14.9 0~11.2 0~8.4
Output Voltage 12 15 18 24 27 36 48
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment 11.4-12.6V 14.3-15.8V 17.1~18.9V 22.8-25.2V 25.6-28.4V 34.2-37.8V 45.6-50.4V
Dimensions 127 x 76.2 x 35 127 x 76.2 x 35 127 x 76.2 x 35 127 x 76.2 x 35 127 x 76.2 x 35 127 x 76.2 x 35 127 x 76.2 x 35
Working Temperature -30~+70°C
Safety Standards ANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved
EMC Standards EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
