MEAN WELL RPS-500 Series Medical Grade Power Supplies 550W

Models:	RPS-500-12 RPS-500-15 RPS-500-18 RPS-500-24 RPS-500-27 RPS-500-36 RPS-500-48
Manufacturer:	MEAN WELL
Type:	Medical Grade Power Supplies

RPS-500 Series Features:

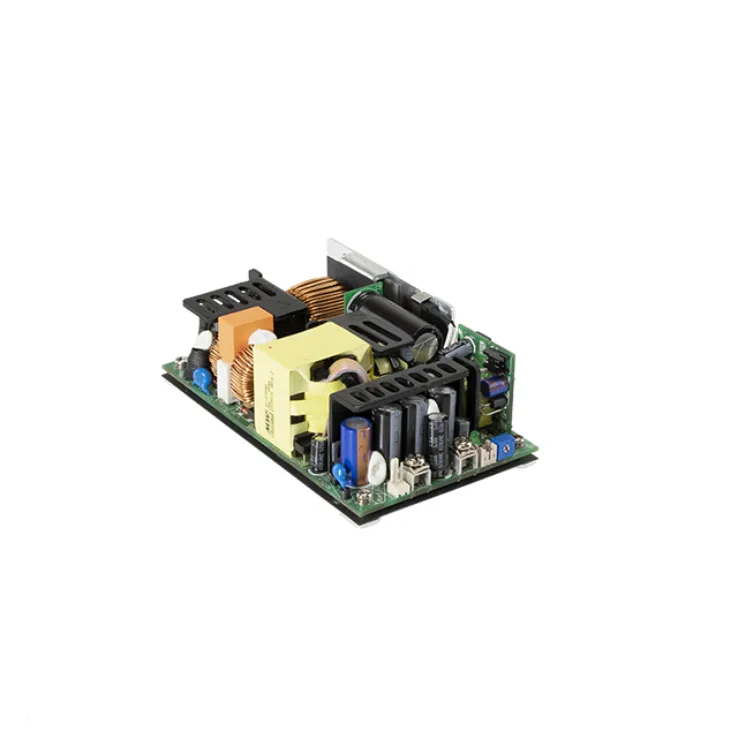

RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint.

Features:

5" by 3" compact size
320W convection, 500W force air
550W peak power (3 sec)
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
EMI for both class I and class II configuration
-30~+70°C wide range operating temperature
No load power consumption <0.5W by PS_ON control
High efficiency up to 94%
Protections: short circuit/ overload/ over voltage/ over temperature
5Vdc standby output, 12 Vdc fan supply, power good, power fail and remote sense.
Operating altitude up to 4000 meters (Note.5)
LED indicator power on
3 years warranty

Spec	RPS-500-12	RPS-500-15	RPS-500-18	RPS-500-24	RPS-500-27	RPS-500-36	RPS-500-48
Wattage	550	550	550	550	550	550	550
Input Voltage	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC	80~264VAC
Output Current	41.6A 25CFM / 26.7A Convection	33.3A 25CFM / 21.3A Convection	27.8A 25CFM / 17.8A Convection	20.8A 25CFM / 13.4A Convection	18.5A 25CFM / 11.9A Convection	13.9A 25CFM / 8.9A Convection	10.4A 25CFM / 6.7A Convection
Output Voltage	12V	15V	18V	24V	27V	36V	48V
Dimensions	5"x3"x1.61"INCH	5"x3"x1.61"INCH	5"x3"x1.61"INCH	5"x3"x1.61"INCH	5"x3"x1.61"INCH	5"x3"x1.61"INCH	5"x3"x1.61"INCH
Working Temperature	-30~+70°C
Safety Standards	IEC60601-1, TUV EN60601-1, UL ANSI/AAMI ES60601-1 (3.1 version), EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design to refer to EN60335-1 (by request)
