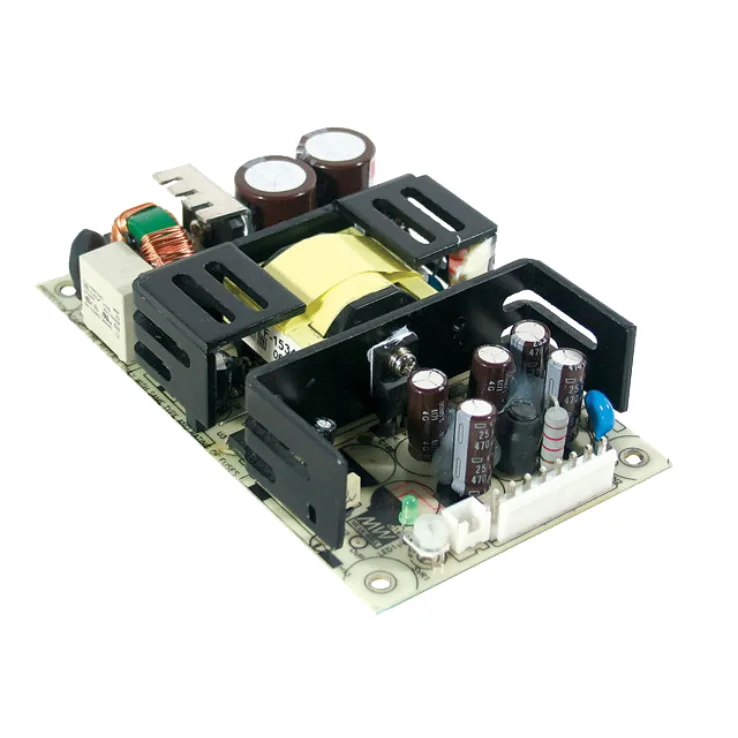

Mean Well RPS-75 Series Medical Grade Power Supplies 75W

Download Datasheet
Models:
  • RPS-75-5
  • RPS-75-12
  • RPS-75-15
  • RPS-75-24
  • RPS-75-36
  • RPS-75-48
  • RPS-75-3.3
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPS-75 Series Features:

No load power consumption <0.75W

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • Fixed switching frequency at 45kHz
  • Medical safety approved
  • Low leakage current <200uA
  • Fixed switching frequency at 65kHz
  • Free air convection with 23.5CFM forced air
  • 3 years warranty
  • Suitable for medical and IT appliacations
Wattage 75 75 75 75 75 75 75
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0~18.7 0~8.3 0~6.7 0~4.2 0~2.8 0~2.1 0~20
Output Voltage 5 12 15 24 36 48 3.3
Output Voltage Options Single Single Single Single Single Single Single
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31
Working Temperature -25B0C~+70B0C
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level
