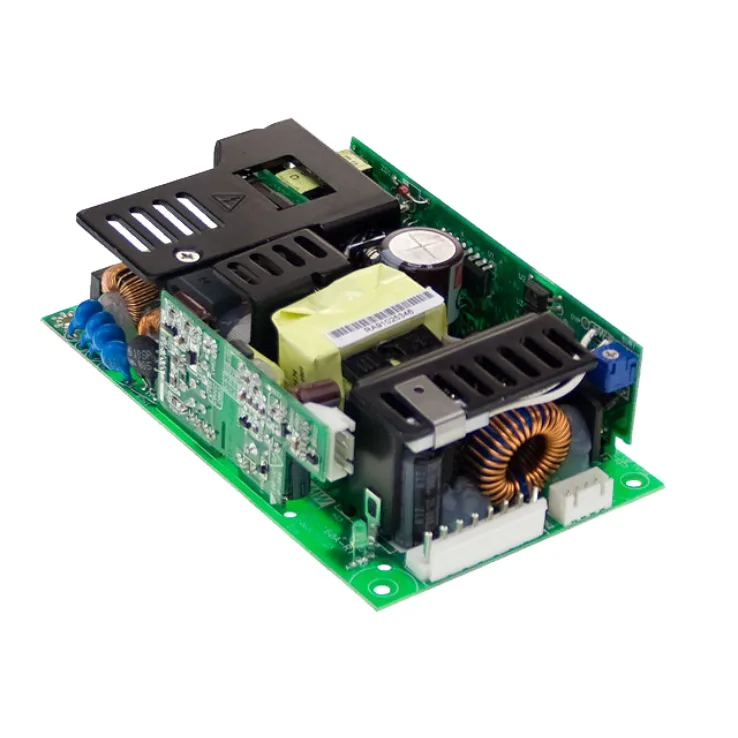

Mean Well RPSG-160 Series Medical Grade Power Supplies 160W

Download Datasheet
Models:
  • RPSG-160-5
  • RPSG-160-48
  • RPSG-160-24
  • RPSG-160-15
  • RPSG-160-12
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPSG-160 Series Features:

No load power consumption under 0.75W by PS-ON control

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • 5"x3" compact size
  • Standby 5V@0.8A
  • Built-in active PFC function
  • With power good and fail signal output
  • Built-in remote sense function for 5-15V
  • 3 years warranty
Wattage 160 160 160 160 160
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0~30 0~3.25 0~6.5 0~10.3 0~12.9
Output Voltage 5 48 24 15 12
Output Voltage Options Single Single Single Single Single
DC output adjustment +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage
Dimensions 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33
Working Temperature -25B0C~+70B0C 14.25 ~ 16.5
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2 EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2, EN61000-6-2
