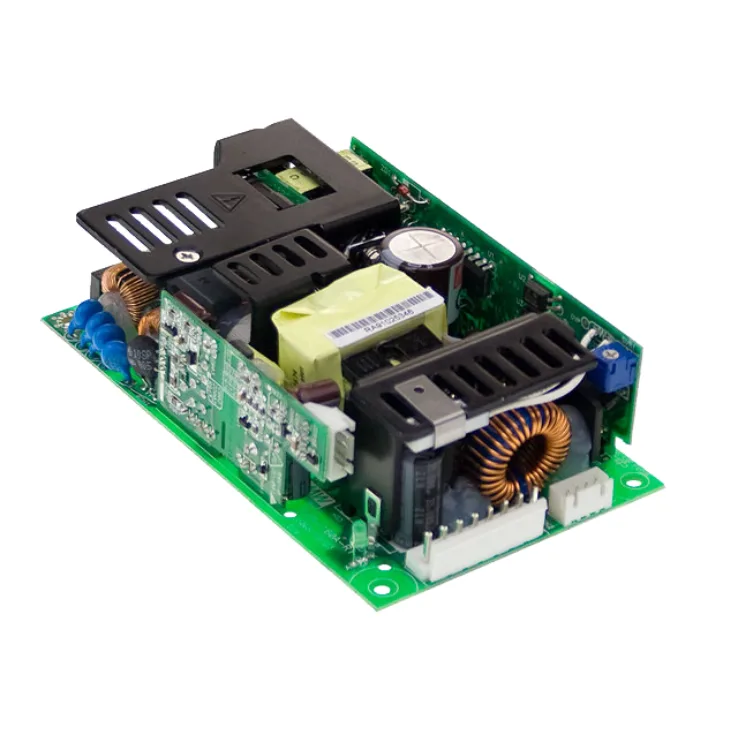

Mean Well RPT-160 Series Medical Grade Power Supplies 160W

Download Datasheet
Models:
  • RPT-160D
  • RPT-160A
  • RPT-160B
  • RPT-160C
  • RPT-160S
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPT-160 Series Features:

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • 5"x3" compact size
  • Free air convection with 20.5 CFM forced air
  • With power good and fail signal output
  • 3 years warranty
Wattage 160 160 160 160 160
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0.3~11, 0.2~5.0, 0.15~1.2 0.6~14, 0.2~5.5, 0.1~1.0 0.6~14, 0.2~5.0, 0.1~1.0 0.6~14, 0.1~3.6, 0.1~1.0 0.3~11, 0.2~5.0, 0.15~1.2
Output Voltage 5, 12, 24 5, 12, -5 5, 12, -12 5, 15, -15 5, 12, 24
Output Voltage Options Triple Triple Triple Triple Triple
DC output adjustment +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage +/- 10% rated output voltage
Dimensions 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33 127 x 76.2 x 33
Working Temperature -20B0C~+70B0C
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
