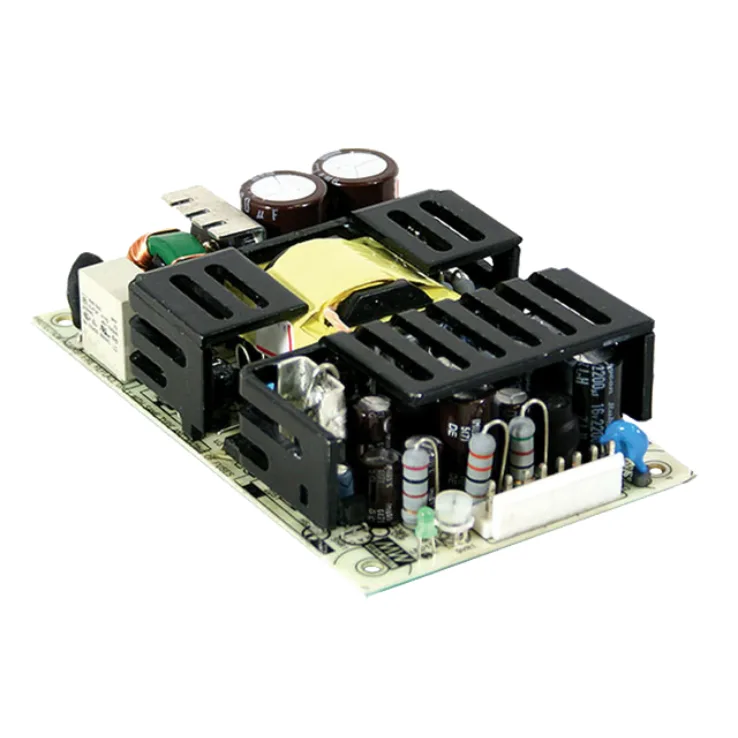

Mean Well RPT-75 Series Medical Grade Power Supplies 75W

Download Datasheet
Models:
  • RPT-75D
  • RPT-7503
  • RPT-75A
  • RPT-75B
  • RPT-75C
Manufacturer: Mean Well
Type: Medical Grade Power Supplies

RPT-75 Series Features:

Low leakage current <200uA

Protections: Short circuit / Overload / Over voltage

Other Features:

  • Universal AC input / Full range
  • Fixed switching frequency at 45kHz
  • Medical safety approved
  • Fixed switching frequency at 65kHz
  • Free air convection with 23.5CFM forced air
  • 3 years warranty
  • Suitable for medical and IT appliacations
Wattage 75 75 75 75 75
Input Voltage 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC 90~264VAC, 127~370VDC
Output Current 0.7~7.0, 0.0~8.0, 0.0~1.5 0.7~7.0, 0.0~8.0, 0.0~1.5 0.6~8.0, 0.2~4.0, 0.1~1.0 0.6~8.0, 0.2~4.0, 0.1~1.0 0.6~8.0, 0.1~3.0, 0.1~1.0
Output Voltage 5, 15, -15 3.3, 5, 12 5, 12, -5 5, 12, -12 5, 15, -15
Output Voltage Options Triple Triple Triple Triple Triple
DC output adjustment -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage -5%~+10% rated output voltage
Dimensions 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31 127 x 76.2 x 31
Working Temperature -20B0C~+70B0C
Safety Standards UL60601-1, TUV EN60601-1 approved
EMC Standards EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level
