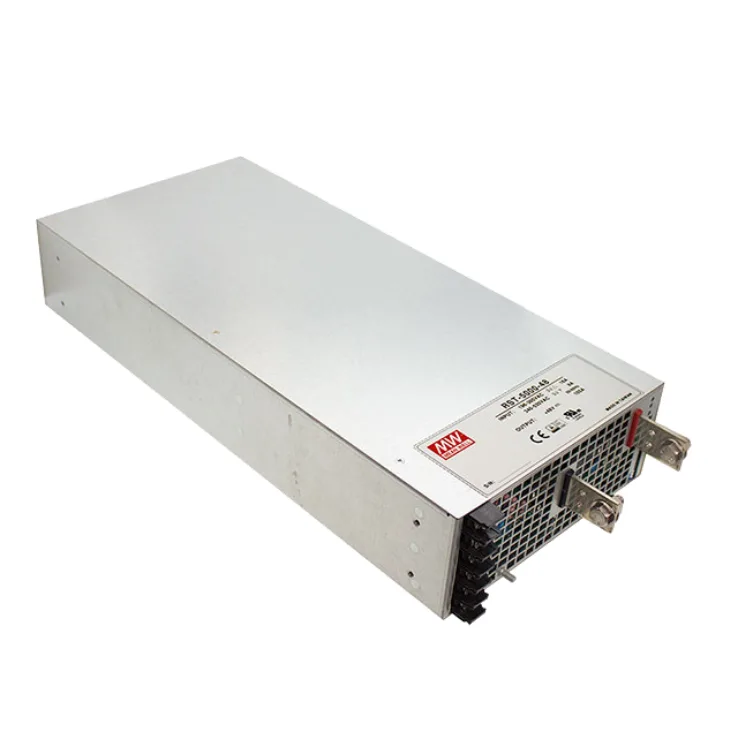

MEAN WELL RST-5000 Series Enclosed Power Supplies 4800–5040W

RST-5000 Series Features:

3 Phase 3 wire Δ AC 340~530V or 3 Phase 4 wire Y AC 196~305V wide range input

High Efficiency up to 91%

Built-in active PFC function

Protections: Short circuit/ Overload/ Over voltage/ Over temperature/ Fan alarm

Other features:

• Forced air cooling by built-in DC with fan speed control function
• Output voltage can be trimmed between 20~120% of the rated output voltage
• Output current can be trimmed between 20~100% of the rated output current
• Current sharing up to 4 units
• Alarm signal output (relay contact and TTL signal): AC fail, DC OK, fan fail
• Built-in 12V/ 0.1A auxiliary output for remote control
• Built-in remote ON-OFF control
• Built-in remote sense function
• 5 years warranty
