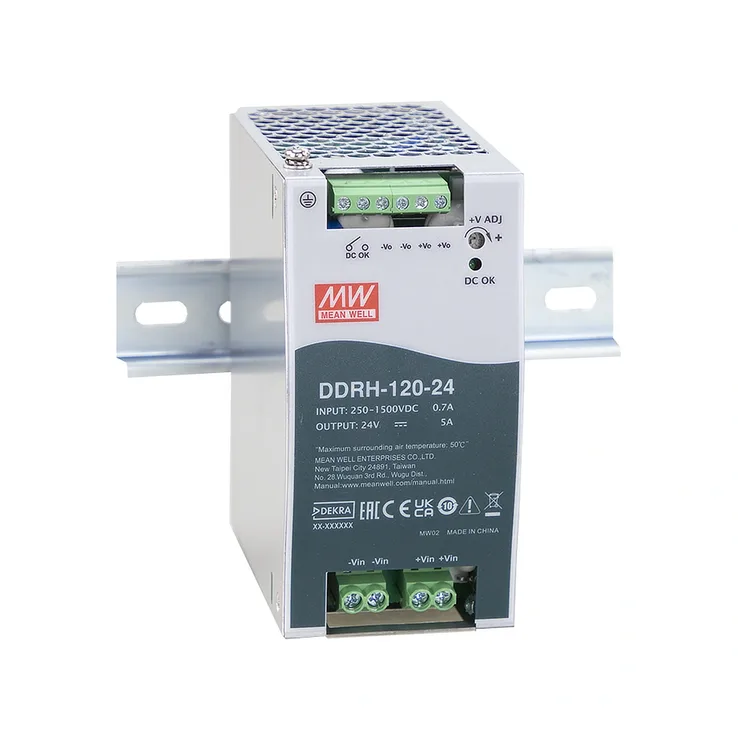

MEAN WELL DDRH-120 Series DC-DC Power Supplies 100.8–120W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
DDRH-120 Series Features:
DDRH-120 series is a 250~1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load.
Features:
- 250~1500Vdc 6:1 ultra-wide input range
- Withstand 1700Vdc surge input for 10 seconds
- 63mm slim width
- 4KVac I/O high isolation (reinforced isolation)
- Protections: short circuit/ overload/ over voltage/ over temperature DC input under voltage/ DC input reverse polarity
- Fanless design, cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- -40~80°C ultra-wide operating temperature (>50°C derating)
- Over voltage category II
- Operating altitude up to 5000 meters
- DC OK relay contact
- DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
- 3 years warranty
| Wattage | 100.8 | 120 | 120 | 120 |
|---|---|---|---|---|
| Input Voltage | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc | 250~1500Vdc |
| Output Current | 8.4 | 5 | 3.75 | 2.5 |
| Output Voltage | 12 | 24 | 32 | 48 |
| Dimensions | 63x125.2x115mm | 63x125.2x115mm | 63x125.2x115mm | 63x125.2x115mm |
| Working Temperature | -40~80°C | |||
| Safety Standards | IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request) | |||
| EMC Standards | BS EN/EN55032(CISPR32) | |||
