MEAN WELL DDRH-15 Series DC-DC Power Supplies 10–15W

Download Datasheet
Models:

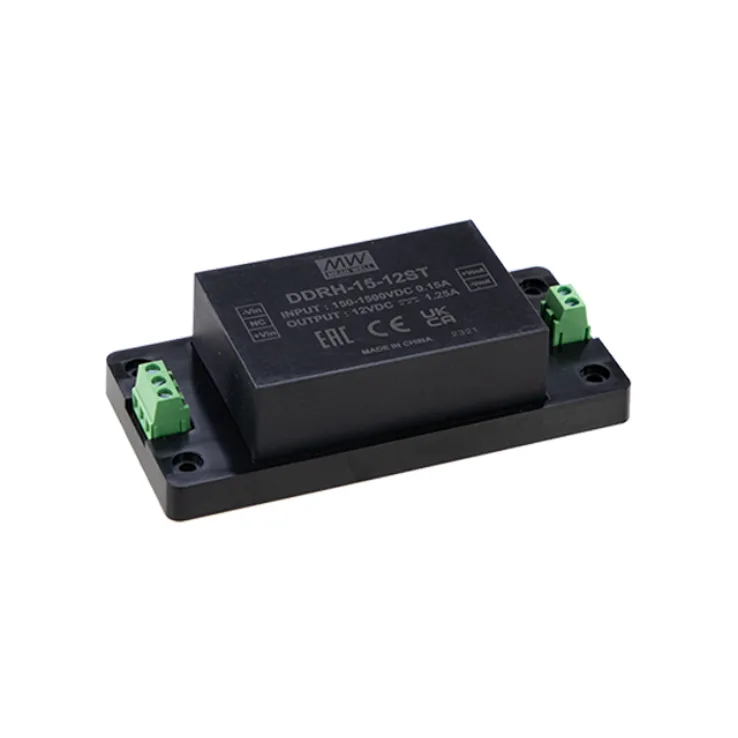

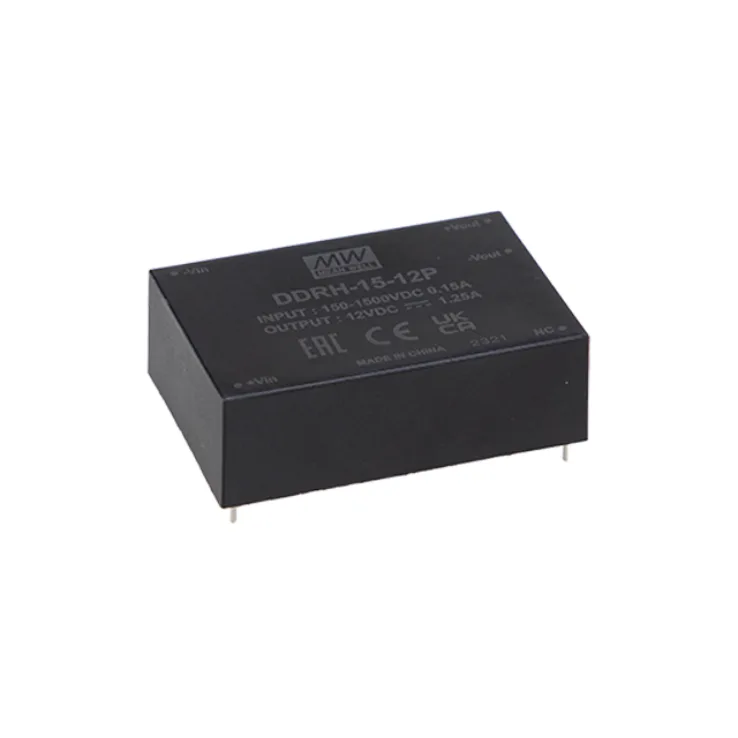

  • DDRH-15-05 P/ST or DR
  • DDRH-15-12 P/ST or DR
  • DDRH-15-15 P/ST or DR
  • DDRH-15-24 P/ST or DR
Manufacturer: MEAN WELL
Type: DC-DC Power Supplies

DDRH-15 Series Features:

DDRH-15 series is a 150~1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load.

Features:

  • 150~1500Vdc 10:1 ultra-wide input range
  • 4KVac I/O high isolation (Reinforced isolation)
  • Protections: short circuit/ overload/ over voltage/ DC input under voltage/ DC input reverse Polarity
  • Fanless design, fully encapsulated, cooling by free air convection

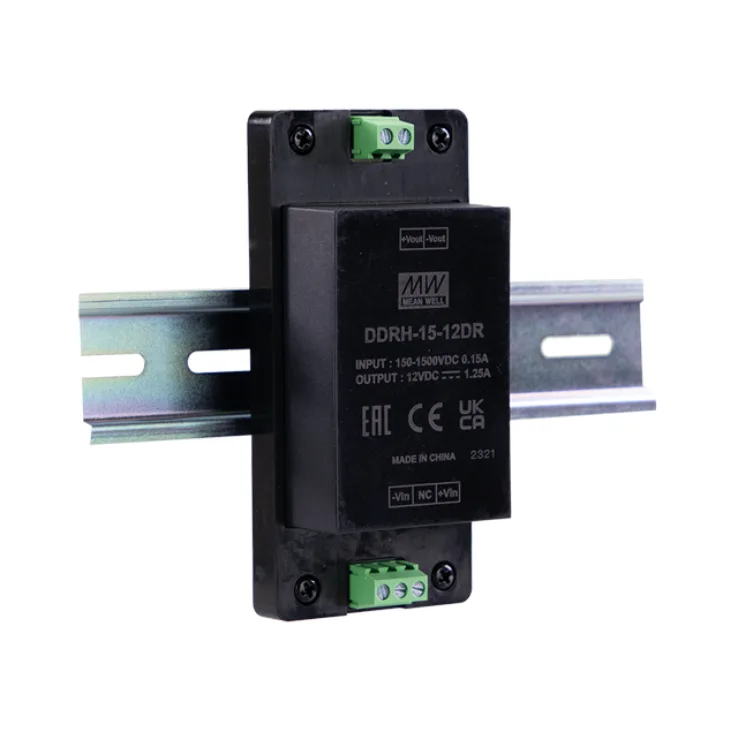

  • Can be installed on DIN rail TS-35*7.5 or 15 (DR Type)
  • -40~80℃ ultra-wide operating temperature (>+50℃ derating)
  • Operating altitude up to 5000 meters
  • 3 years warranty
Wattage 10 15 15 15
Input Voltage 150~1500Vdc 150~1500Vdc 150~1500Vdc 150~1500Vdc
Output Current 2 1.25 1 0.625
Output Voltage 5 12 15 24
Dimensions P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm P Type: 76.2*50.8*25mm, ST Type: 122.3*57.3*32mm, DR Type: 122.3*57.3*43.5mm
Working Temperature -40 ~ +80℃ (Refer to "Derating Curve")
Safety Standards IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested)
EMC Standards BS EN/EN55032
