MEAN WELL DDRH-15 Series DC-DC Power Supplies 45W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
DDRH-15 Series Features:
DDRH-15 series is a 150~1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load.
Features:
- 150~1500Vdc 10:1 ultra-wide input range
- 4KVac I/O high isolation (Reinforced isolation)
- Protections: short circuit/ overload/ over voltage/ DC input under voltage/ DC input reverse Polarity
- Fanless design, fully encapsulated, cooling by free air convection

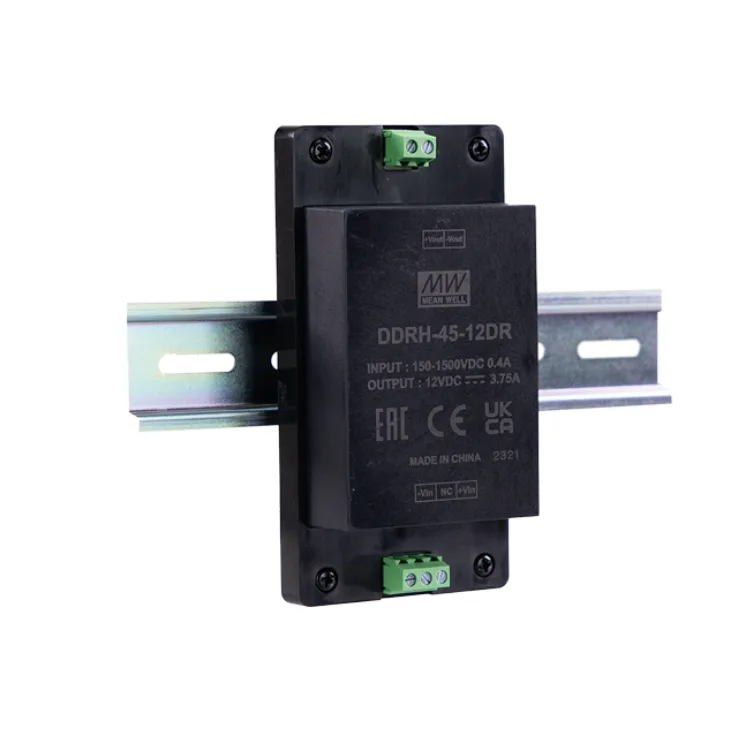

- Can be installed on DIN rail TS-35*7.5 or 15 (DR Type)
- -40~80℃ ultra-wide operating temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- 3 years warranty
| Wattage | 45 | 45 | 45 | 45 |
|---|---|---|---|---|
| Input Voltage | 150~1500Vdc | 150~1500Vdc | 150~1500Vdc | 150~1500Vdc |
| Output Current | 3.75 | 3 | 1.87 | 0.938 |
| Output Voltage | 12 | 15 | 24 | 48 |

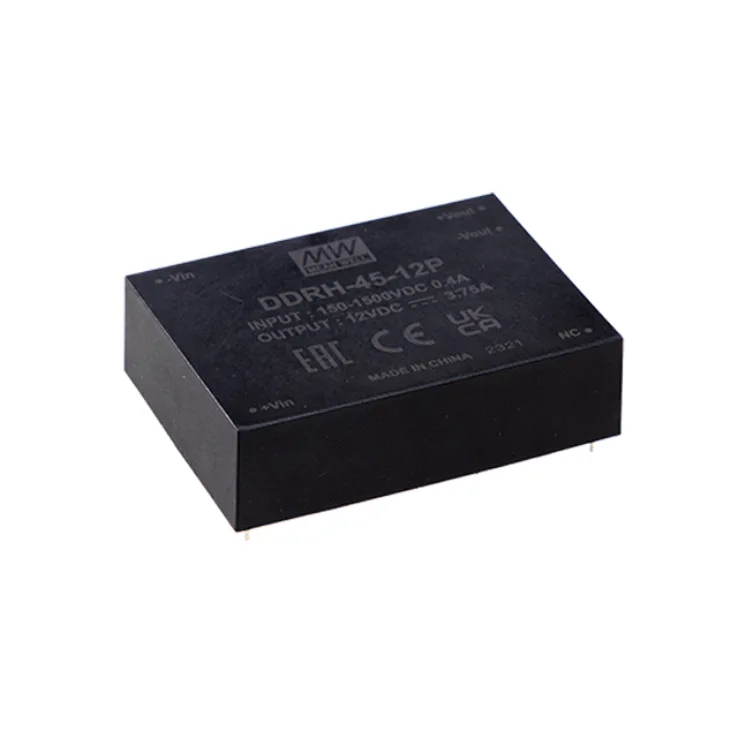

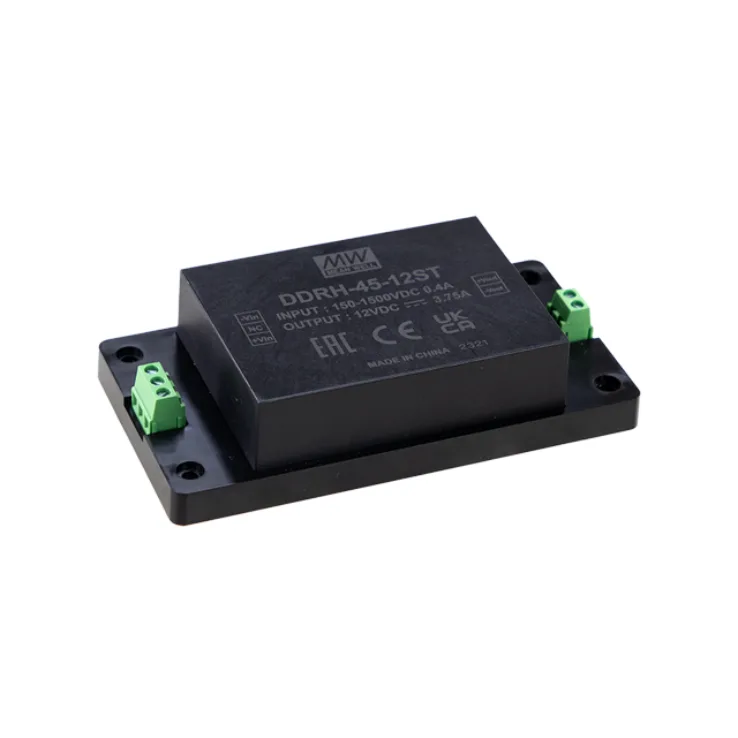

| Dimensions | P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm | P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm | P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm | P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm |
| Working Temperature | -40 ~ +80℃ (Refer to "Derating Curve") | |||
| Safety Standards | IEC62109-1(LVD), EAC TP TC 004 approved; Design refer to UL1741(By requested) | |||
| EMC Standards | BS EN/EN55032 | |||
