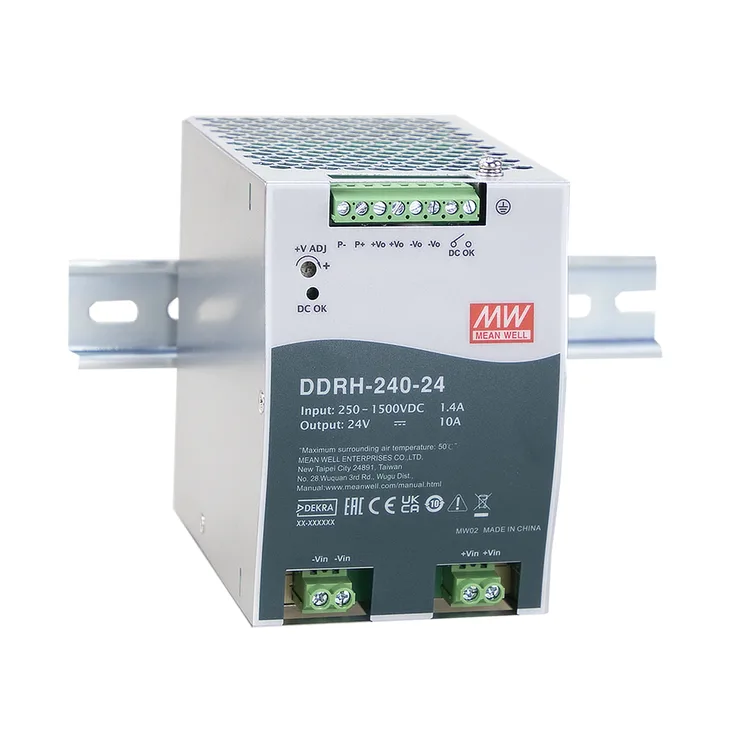

MEAN WELL DDRH-240 Series DC-DC Power Supplies 200.4–240W

DDRH-240 Series Features:

DDRH-240 series is a 250~1500Vdc high reliable ultra-high input DIN rail type DC-DC converter which can supply stable working voltage for the load.

Features:

250~1500Vdc 6:1 ultra-wide input range
Withstand 700Vdc surge input for 10 seconds
85.5mm slim width
4KVac I/O high isolation (reinforced isolation)
Protections: short circuit/ overload/ over voltage/ over temperature/ DC input under voltage/ DC input reverse polarity
Fanless design, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
-40~80°C ultra-wide operating temperature (>50°C derating)
Current sharing up to 960W(3+1)
Over voltage category II
Operating altitude up to 5000 meters
DC OK relay contact
DC output voltage adjustable (12~15V, 24~29V, 30~36V, 48~58V)
3 years warranty

Spec	DDRH-240-12	DDRH-240-24	DDRH-240-32	DDRH-240-48
Wattage	200.4	240	240	240
Input Voltage	250~1500Vdc	250~1500Vdc	250~1500Vdc	250~1500Vdc
Output Current	16.7	10	7.5	5
Output Voltage	12	24	32	48
Dimensions	BS EN/EN55032(CISPR32)	BS EN/EN55032(CISPR32)	BS EN/EN55032(CISPR32)	BS EN/EN55032(CISPR32)
Working Temperature	-40~80°C
Safety Standards	IEC62109-1, BS EN/EN62109-1, EAC TP TC 004 approved; Design refer to UL1741(By request)
EMC Standards	BS EN/EN55032(CISPR32)
