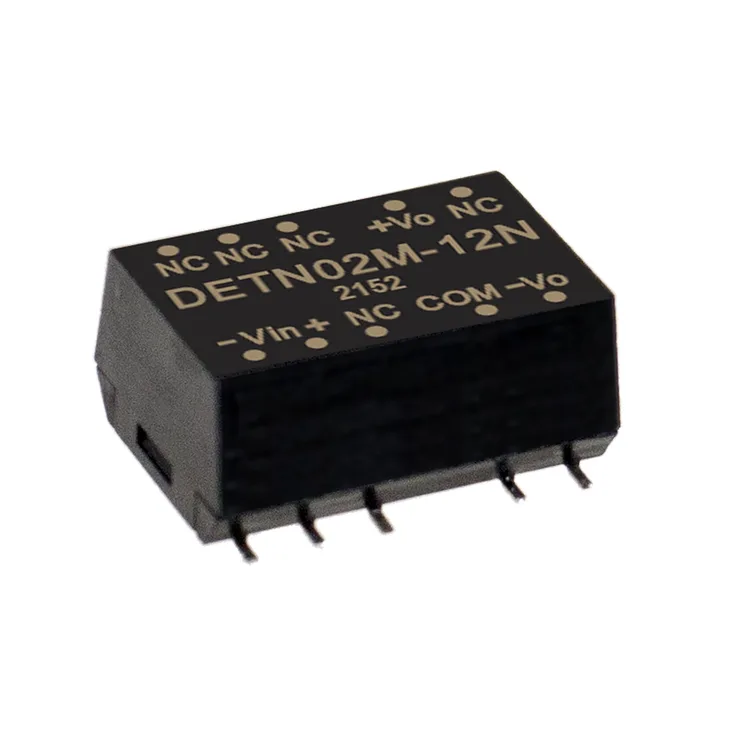

MEAN WELL DETN02-N Series DC-DC Power Supplies 2W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
DETN02-N Series Features:
DETN02-N series is 2W isolated and unregulated module type DC-DC converter with SMD package.
Features:
- SMD package with industry standard pinout
- Operating temperature range -40~85°C
- High efficiency up to 83%
- 3KVDC I/O isolation
- Low cost
- 3 years warranty
| Wattage | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 4.5~5.5 | 4.5~5.5 | 4.5~5.5 | 10.8~13.2 | 10.8~13.2 | 10.8~13.2V | 21.6~26.4 | 21.6~26.4 | 21.6~26.4 |
| Output Current | ±20~200mA | ±8.3~83mA | ±6~66mA | ±20~200mA | ±8~83mA | ±6~66mA | ±20~200mA | ±8~83mA | ±6~66mA |
| Output Voltage | ±5 | ±12 | ±15 | ±5 | ±12 | ±15 | ±5 | ±12 | ±15 |
| Dimensions | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm | 15.24x10.9x9.1mm |
| Working Temperature | -40~85°C | ||||||||
| Safety Standards | EAC TP TC 004 approved | ||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | ||||||||
