MEAN WELL N78 Series DC-DC Power Supplies W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
N78 Series Features:
N78 series converters is high efficiency switching regulators can suit to replace LM78xx/LM79xx linear egulators and its pin-out can be compatible with LM78xx/LM79xx IC.
Features:
- Compact size
- Pin-out compatible with LM78xx/LM79xx linear regulators
- High efficiency up to 96%, no heatsink required
- Wide input range up to 36V
- Support negative output
- Operating temperature range -40~85°C
- Comply to BS EN/EN55032 radiated Class B without additional components
- Protections: Short circuit/ Overload/ Over temperature
- Low ripple and noises
- 3 years warranty
| Input Voltage | 12V(6~36V) | 12V(6~36V) | 12V(6~36V) | 12V(6~36V) | 12V(8~36V), 12V(8~27V) | 12V(8~36V), 12V(8~27V) | 12V(8~36V), 12V(8~27V) | 12V(8~36V), 12V(8~27V) | 24V(13~36V) | 24V(13~36V) | 24V(13~36V) | 24V(13~36V) | 24V(16~36V), 12V(8~20V) | 24V(16~36V), 12V(8~20V) | 24V(16~36V), 12V(8~20V) | 24V(16~36V), 12V(8~20V) | 24V(20~36V), 12V(8~18V) | 24V(20~36V), 12V(8~18V) | 24V(20~36V), 12V(8~18V) | 24V(20~36V), 12V(8~18V) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Current | 0~1000mA | 0~1000mA | 0~1000mA | 0~1000mA | 0~1000mA, 0~500mA | 0~1000mA, 0~500mA | 0~1000mA, 0~500mA | 0~1000mA, 0~500mA | 0~1000 | 0~1000 | 0~1000 | 0~1000 | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA | 0~1000mA, 0~300mA |
| Output Voltage | 3.3V | 3.3V | 3.3V | 3.3V | 5V- -5V | 5V- -5V | 5V- -5V | 5V- -5V | 9 | 9 | 9 | 9 | 12V, -12V | 12V, -12V | 12V, -12V | 12V, -12V | 15V, -15V | 15V, -15V | 15V, -15V | 15V, -15V |
| Dimensions | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm | Open frame size: 10.5x7.5x16mm, Case size: 11.5x9x17.5mm |
| Working Temperature | -40~85°C | |||||||||||||||||||
| Safety Standards | EAC TP TC 004 approved | |||||||||||||||||||
| EMC Standards | BS EN/EN55032(CISPR32) | |||||||||||||||||||
More DC-DC Power Supplies from MEAN WELL
SKMW15W8 & DKMW15W8 series
SKMW15W8 & DKMW15W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
15 15 15 15 15 15 15 15
0~3000mA 0~3000mA 0~1250mA 0~1000mA 0~625mA ±0~1500mA ±0~625mA ±0~500mA
other other 12 other 24 other other other
SKMW30W8 & DKMW30W8 series
SKMW30W8 & DKMW30W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
30 30 30 30 30 30
0~7500mA 0~6000mA 0~2500mA 0~2000mA ±0~1250mA ±0~1000mA
other other 12 other other other
SKMW20W8 & DKMW20W8 series
SKMW20W8 & DKMW20W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
20 20 20 20 20 20
0-4500mA 0-4000mA 0-1670mA 0-1330mA ±0~830mA ±0~660mA
other other 12 other other other
SKM50W8 series
SKM50W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
50 50 50 50
0~10A 0~10A 0~4.17A 0~3.33A
other other 12 other
SKM30W8 & DKM30W8 series
SKM30W8 & DKM30W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
30 30 30 30 30 30 30
0~7000mA 0~6000mA 0~2500mA 0~2000mA 0~1250mA ±0~1250mA ±0~1000mA
other other 12 other 24 other other

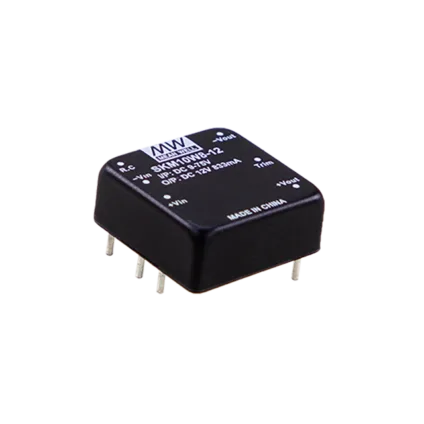

SKM10W8 & DKM10W8 series
SKM10W8 & DKM10W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
10 10 10 10 10 10 10
0~2500mA 0~2000mA 0~833mA 0~666mA ±0~1000mA ±0~417mA ±0~330mA
other other 12 other other other other

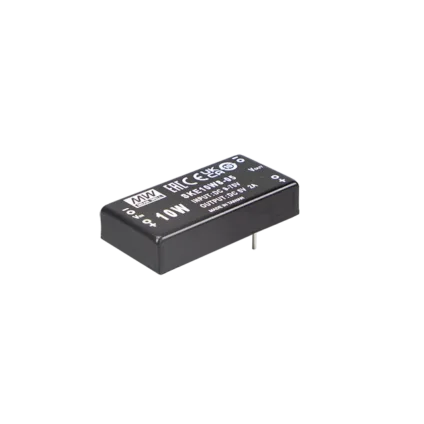

SKE10W8 & DKE10W8 series
SKE10W8 & DKE10W8 series
DC-DC Power Supplies by MEAN WELL
mean-well
dc-dc-power-supplies
10 10 10 10 10 10 10 10 10
0~3000mA 0~3000mA 0~1100mA 0~833mA 0~666mA 0~417mA ±0~1000mA ±0~417mA ±0~333mA
other other other 12 other 24 other other other

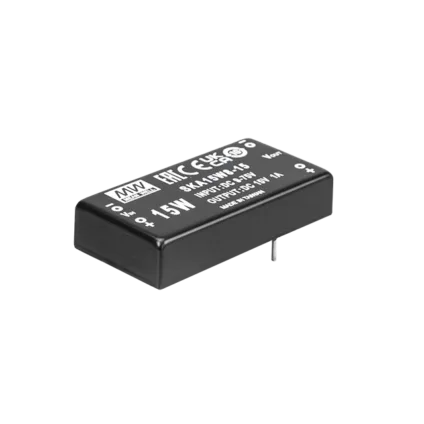

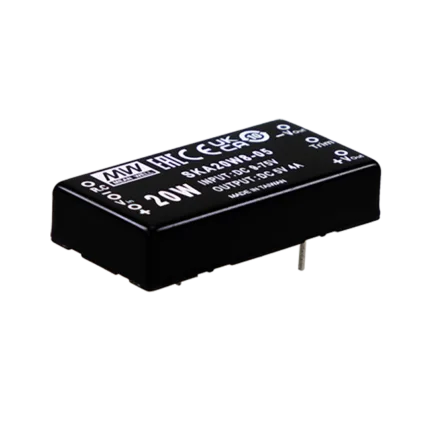

SKA15W8 & DKA15W8 series
