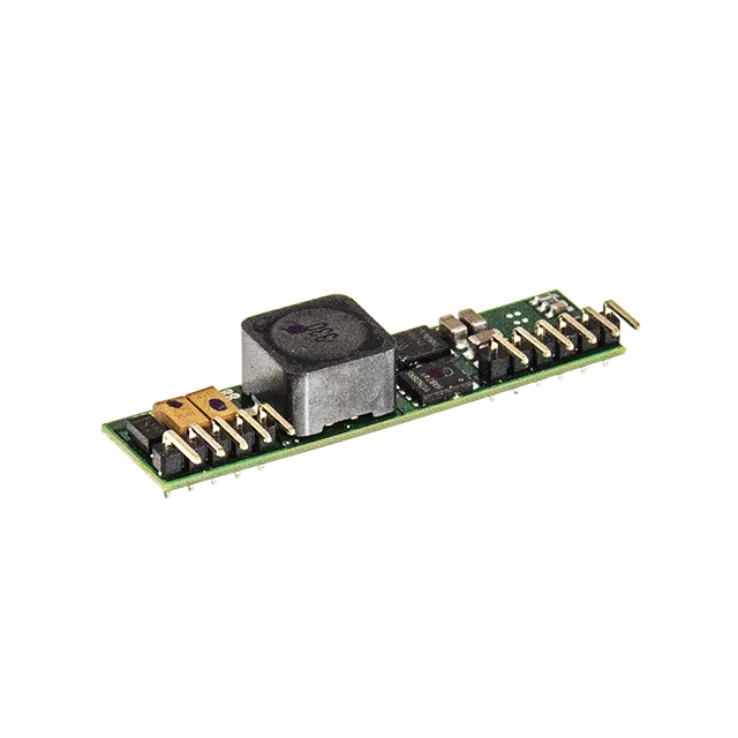

MEAN WELL NID35 Series DC-DC Power Supplies 17.5–36W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
NID35 Series Features:
Economical open frame design
Wide input range
High efficiency up to 96%
Remote ON / OFF control
Compact size 2.0"x0.512"x 0.433"(SIP package)
Protections: Short circuit/ Overload/ Over voltage
-30~+85°C wide working temperature
Cooling by free air convection
Comply to EN55032 ClassA without additional components
Trimming output (optional)
3 years warranty
| Wattage | 17.5 | 34.8 | 36 | 36 |
|---|---|---|---|---|
| Input Voltage | 10.5-53 VDC | 20-53 VDC | 20-53 VDC | 30-53 VDC |
| Output Current | 0-3.5A | 0-2.9A | 0-2.4A | 0-1.5A |
| Output Voltage | 5 | 12 | 15 | 24 |
| Output Voltage Options | Single | Single | Single | Single |
| DC output adjustment | 5V | 12V | 15V | 24V |
| Dimensions | 50.8 x 13 x 11 | 50.8 x 13 x 11 | 50.8 x 13 x 11 | 50.8 x 13 x 11 |
| Working Temperature | -30 -+85°C (Refer to "Derating Curve") | |||
| Safety Standards | EN62368-1 | |||
| EMC Standards | Compliance to EN55032, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6 | |||
