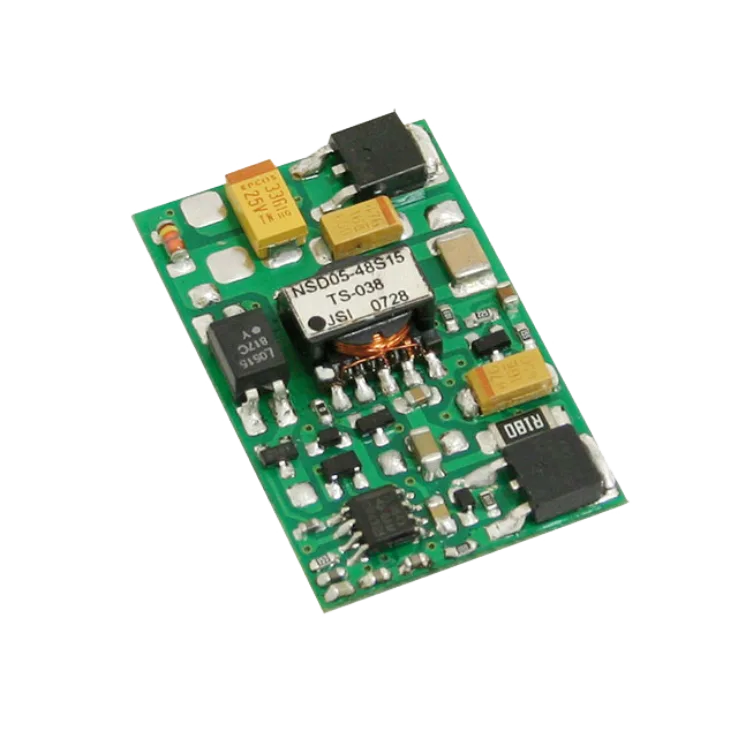

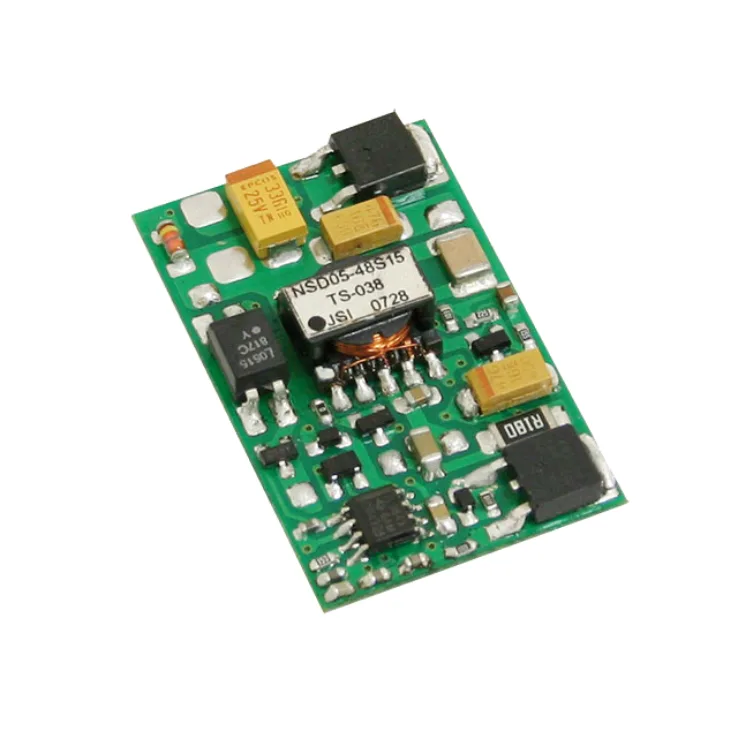

Mean Well NSD05 Series DC-DC Power Supplies 5W

Download Datasheet
Models:
  • NSD05-12S12
  • NSD05-12S15
  • NSD05-12S3
  • NSD05-12S5
  • NSD05-48S12
  • NSD05-48S15
  • NSD05-48S3
  • NSD05-48S5
Manufacturer: Mean Well
Type: DC-DC Power Supplies

NSD05 Series Features:

4:1 wide input range

Protections: Short Circuit / Overload / Over voltage

Other Features:

  • 1000VDC I/O isolation
  • Built in EMI filter
  • Built in ON/OFF control
  • Trimming output (+10%)
  • Cooling by free air convection
  • 100%full load burn in test
  • Low cost, high reliability
  • 2 years warranty
Wattage 5 5 5 5 5 5 5 5
Input Voltage 9.2~36 9.2~36 9.2~36 9.2~36 18~72 18~72 18~72 18~72
Output Current 420 330 1200 1000 420 330 1200 1000
Output Voltage 12 15 3.3 5 12 15 3.3 5
Output Voltage Options Single Single Single Single Single Single Single Single
DC output adjustment N/A N/A N/A N/A N/A N/A N/A N/A
Dimensions 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3 40.6 x 25.4 x 8.3
Working Temperature -25~+70B0C
Safety Standards IEC60950-1 CB approved by TUV
EMC Standards EN55022 Class B, EN61000-4-2,3,4,5,6,8 EN55022 class B, EN61000-4-2,3,4,5,6,8 EN55022 Class B, EN61000-4-2,3,4,5,6,8 EN55022 class B, EN61000-4-2,3,4,5,6,8
