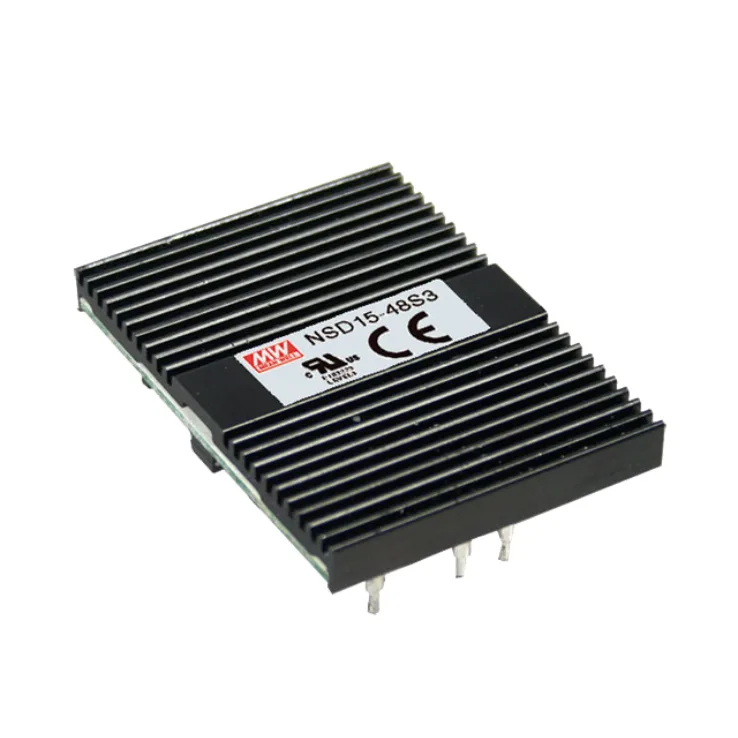

MEAN WELL NSD15 Series DC-DC Power Supplies 15W
Download Datasheet
| Models: |
|
| Manufacturer: | MEAN WELL |
| Type: | DC-DC Power Supplies |
NSD15 Series Features:
4:1 wide input range
Protections: Short Circuit / Overload / Over voltage
Other Features:
- 1500VDC I/O isolation
- Built in EMI filter
- Output voltage trimming function
- Built in ON/OFF control
- Cooling by free air convection
- 100%full load burn in test
- Low cost, high reliability
- 2 years warranty
| Wattage | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Voltage | 9.4~36 | 9.4~36 | 9.4~36 | 9.4~36 | 9.4~36 | 9.4~36 | 9.4~36 | 18~72 | 18~72 | 18~72 | 18~72 | 18~72 | 18~72 | 18~72 |
| Output Current | +70~1500 | +30~620 | +20~500 | 3750 | 3000 | 1250 | 1000 | +70~1500 | +30~620 | +20~500 | 3750 | 3000 | 1250 | 1000 |
| Output Voltage | 5, -5 | 12, -12 | 15, -15 | 3.3 | 5 | 12 | 15 | 5, -5 | 12, -12 | 15, -15 | 3.3 | 5 | 15 | 15 |
| Output Voltage Options | Dual | Dual | Dual | Single | Single | Single | Single | Dual | Dual | Dual | Single | Single | Single | Single |
| DC output adjustment | N/A | N/A | N/A | N/A | 1250 | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Dimensions | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 | 50.8 x 39.1 x 9.82 |
| Working Temperature | -25~+70°C | |||||||||||||
| Safety Standards | UL60950-1 approved | |||||||||||||
| EMC Standards | EN55022 class B, EN61000-4-2,3,4,5,6,8 | |||||||||||||
